HS8546V5 HUAWEI GPON ONU Dual Band AC WiFi 2.4G 5G 4GE 1TEL 1USB FTTH Modem

Minimum Order Quantity :	50pcs	Price :	Negociatable
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Brand Name:	HUAWEI
Certification:	CE ROHS Anatel	Model Number:	HS8546V5

Detail Information
Chipset:	Hisilicon	Firmware:	English Firmware
Application:	FTTH FTTB FTTx	Model:	EchoLife HS8546V5 Dual Band,
Dimensions (H X W X D):	225x122 X 30mm	Weight:	330g
Ports:	4GE +1TEL+2USB+2.4g/5g Wi-Fi Dual Band	Operating Temperature:	0°C To +40°C
Operating Humidity:	5% RH To 95% RH (non-condensing)	Power Adapter Input:	100 V To 240 V AC, 50 Hz/60 Hz
System Power Supply:	11 V To 14 V DC, 1.5 A	Optical Connector:	SC/UPC
Indicators:	Power/PON/INTERNET/LAN//USB	Type:	GPON ONU ONT
Power Supply:	EU Power / US Power/ UK Power Optional
Highlight:	HS8546V5 HUAWEI GPON ONU 2.4G , 2.4G 5G 4GE 1TEL 1USB FTTH Modem , 4GE 1TEL 1USB FTTH Modem

Product Description

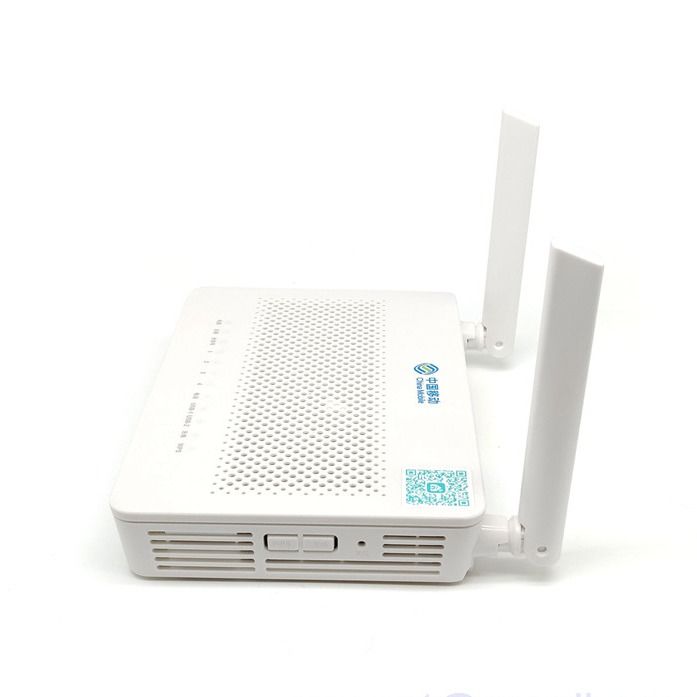

HUAWEI GPON ONU HS8546V5 dual band AC Wi-Fi 2.4G 5G 4GE 1TEL 1USB FTTH optical modem

HS8546V5 4GE Dual Band 2.4g/5g Wi-Fi 1TEL 2USB

HS8546V5 Introduction:

The Echo Life HS8546V5 GPON ONU, an optical network terminal (ONT), is a high-end home in FTTH solution.

By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The HS8546V5 provides 1 POTS port, 4GE Ethernet ports,2USB port and dual band wireless,2.4G/5G,featuring high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and IPTV services.

HS8546V5 Specification :

Model	HUAWEI echolife HS8546V5
Dimensions (H x W x D)	225x122 x 30mm
Weight	330Kg
Operating Temperature	0°C to 40°C
Operating Humidity	5% RH to 95% RH (non-condensing)
Power Adapter Input	100 V to 240 V AC, 50 Hz/60 Hz
System Power Supply	11 V to 14 V DC, 1.5A
Ports	4GE +1TEL+2USB+2.4g/5g Wi-Fi Dual band
Optical Connector	SC / UPC
Indicators	Power/PON/INTERNET/LAN//USB

HS8546V5 HUAWEI GPON ONU Dual Band AC WiFi 2.4G 5G 4GE 1TEL 1USB FTTH Modem 0

HS8546V5 Package :
