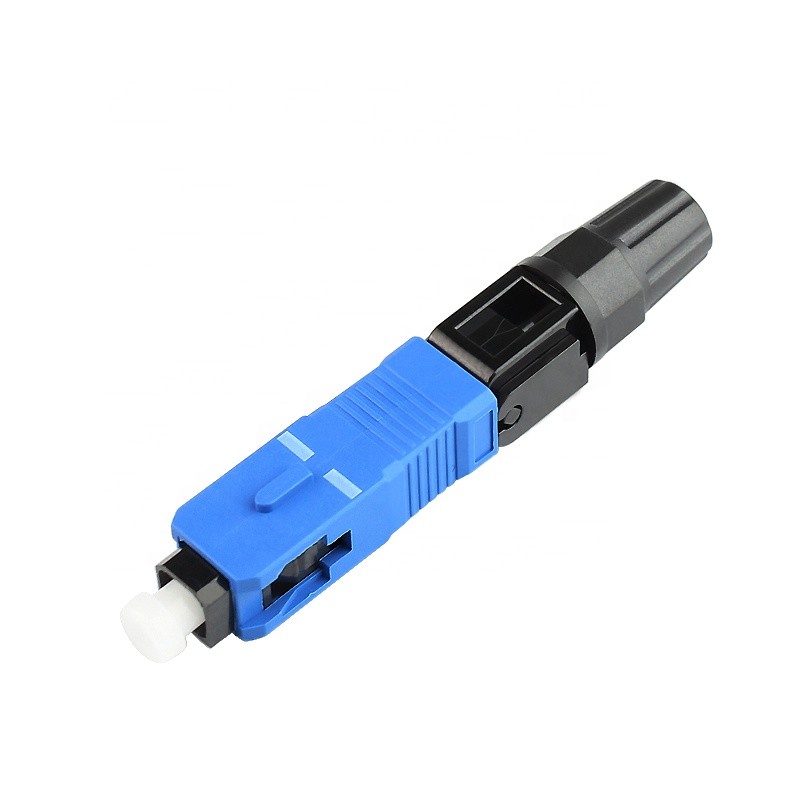

Field Assembly Fiber Optic Quick Connector

Minimum Order Quantity :	50pcs	Price :	Negociatable
Packaging Details :	Carton Box	Delivery Time :	7-15days
Payment Terms :	T/T,Western Union	Supply Ability :	10000pcs/Week

Place of Origin:	China	Certification:	CE ROHS Anatel

Detail Information
Model NO.:	Type D	Application:	Fiber Distribution Frame, Network Equipment, Fiber Module
Light Source TYPE:	Laser	Connector Type:	SC-APC
Brand:	OEM	Weight:	7g
Trademark:	OEM	Transport Package:	Carton Box
Specification:	50mm	Origin:	China
HS Code:	8536700000	Port:	Yantian, China
Transmission Medium:	Single-Mode	Structure:	SC
Number Of Cores:	Single-Core	Ferrule Endface:	PC(UPC)
Shape:	Rectangular	Fabrication Process:	Moulded
Highlight:	Field Assembly Fiber Optic Quick Connector , Wedge Type Fiber Optic Quick Connector , 7g Fiber Optic Fast Connector

Product Description

Type D FTTH Field Mountable Fiber Optic fast Connectors

Field installation connector can be assembled easily and quickly in the field with no fusion device or special tool. To reduce cable waste, the drop cable connector can be repeatedly used for 5 times. The fiber mating alignment and gripping technology include a factory-polished zirconia ferrule, which improve durability and provide a reliable, low-loss fiber termination. The kit can be separately ordered. It contains strip and cut tool, cleaver, and cleaning paper.

Feature

1. Double "V" structure, firmer.

2. The tail is push type to fasten the fiber with key, better than screw one.

3. Core structure: Normally closed elastic fastening mode, excellent technical index.

4. More maneuverable, high success assembly rate, long life cycle, later maintenance is simple and convenient.

5. Linkage structure design, joint and movable.

Specification

Insertion loss	Main≤0.25dB Max.≤0.40dB
Return loss	UPC≥45dB APC≥55
Tensile	△IL<0.3dB @ 30N
Cable	3.0X2.0mm Drop cable
Operating Wavelength	1310&1550nm
Average assembly time	1 min
Assembly success rate	≥97%
Re-assembly	>5 times
Durability	>500 times
Temperature	-40ºC~+85ºC,96h,insertion Variation<0.3dB
Standard	Telcordia GR-326-Core:2010 and IEC 61754-4:2002
Humidity	95%
Operating temp.	-40ºC~+80ºC
Storage temp.	-40ºC~+80ºC
