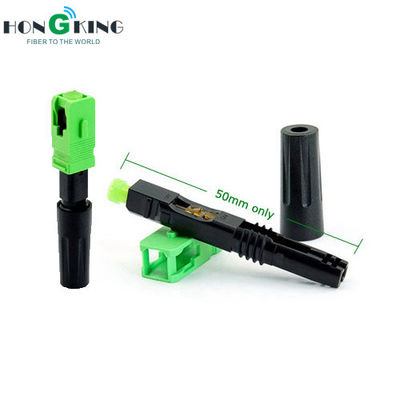

Single Mode Mechanical Field Assembly SC Fast Connector Fiber Optic 50.5mm
Single Mode Mechanical Field Assembly SC Fast Connector Fiber Optic 50.5mm Single Mode Mechanical Field Assembly SC Fast Connector Fiber Optic 50.5mm Single Mode Mechanical Field Assembly SC Fast Connector Fiber Optic 50.5mm Single Mode Mechanical Field Assembly SC Fast Connector Fiber Optic 50.5mm Single Mode Mechanical Field Assembly SC Fast Connector Fiber Optic 50.5mm
Contact Now Chat Now

Single Mode Mechanical Field Assembly SC Fast Connector Fiber Optic 50.5mm

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Certification: CE ROHS Anatel

Detail Information
Model NO.: Type A Application: Fiber Distribution Frame, Network Equipment, Fiber Module
Light Source TYPE: Laser Connector Type: SC-APC
Brand: OEM Weight: 7g
Trademark: OEM Transport Package: Carton Box
Specification: 50mm Origin: China
HS Code: 8536700000 Port: Yantian, China
Transmission Medium: Single-Mode Structure: SC
Number Of Cores: Single-Core Ferrule Endface: APC
Shape: Rectangular Fabrication Process: Moulded
High Light:

SC Fast Connector Fiber Optic 50.5mm

,

50.5mm fast connector fiber optic

,

50.5mm 0.40dB SC Fast Connector

Product Description

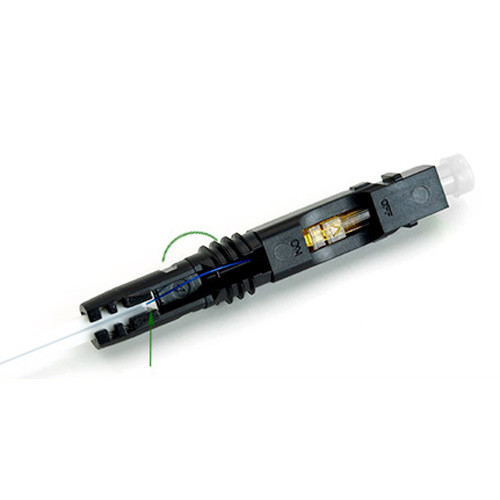

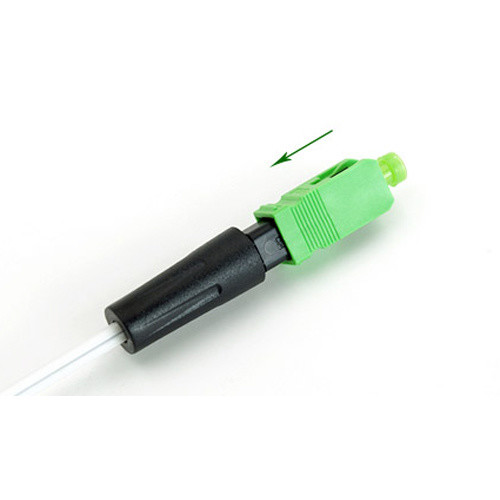

Field assembly fiber optical Mechanical fast connector


Field installation connector can be assembled easily and quickly in the field with no fusion device or special tool. To reduce cable waste, the drop cable connector can be repeatedly used for 5 times. The fiber mating alignment and gripping technology include a factory-polished zirconia ferrule, which improve durability and provide a reliable, low-loss fiber termination. The kit can be separately ordered. It contains strip and cut tool, cleaver, and cleaning paper.

Feature
  1. Pre-treated fiber in the ferrule, no fusion and polishing
  2. Stable optical performance and reliable environmental performance
  3. length is less than 50.5mm

Specification

Insertion loss Main≤0.25dB Max.≤0.40dB
Return loss UPC≥45dB APC≥55
Tensile △IL<0.3dB @ 30N
Cable 3.0X2.0mm Drop cable
Operating Wavelength 1310&1550nm
Average assembly time 1 min
Assembly success rate ≥97%
Re-assembly >5 times
Durability >500 times
Temperature -40ºC~+85ºC,96h,insertion Variation<0.3dB
Standard Telcordia GR-326-Core:2010 and IEC 61754-4:2002
Humidity 95%
Operating temp. -40ºC~+80ºC
Storage temp. -40ºC~+80ºC
