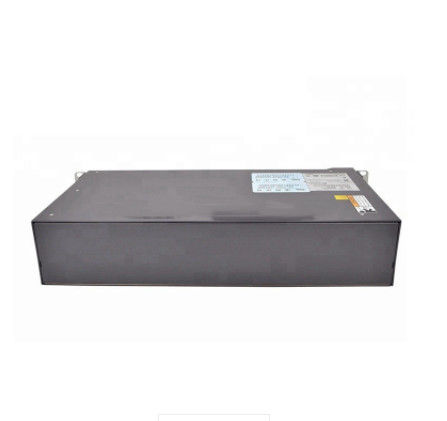

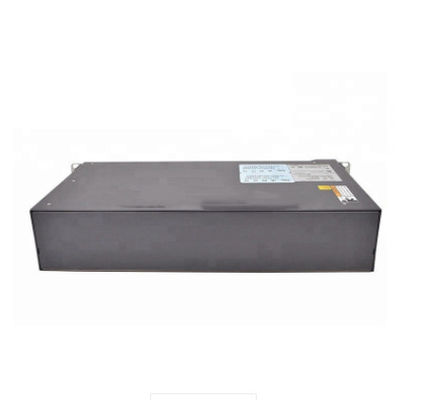

Single 10ge Ma5608t OLT Optical Line Terminal 16gpon C+ 1gpfd 1mcud1 1mpwc 1gpfd
Single 10ge Ma5608t OLT Optical Line Terminal 16gpon C+ 1gpfd 1mcud1 1mpwc 1gpfd
Contact Now

Single 10ge Ma5608t OLT Optical Line Terminal 16gpon C+ 1gpfd 1mcud1 1mpwc 1gpfd

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Certification: CE ROHS Anatel

Detail Information
Model NO.: MA5608T Single 10GE DC Item 3: Ma5608t Olt 1 Mcud1 1 Mpwc
Item 4: Ma5608t Olt 1 Mcud1 1 Mpwd Item 5: Ma5608t Olt 2 Mcud 1 Mpwc
Item 6: Ma5608t Olt 2xmcud 1xmpwd Item 7: Ma5608t Olt 2 Mcud1 1 Mpwc
Item 8: Ma5608t Olt 2 Mcud1 1 Mpwd Trademark: Hongking
Transport Package: Carton Box Specification: MA5608T Single 10GE DC
Origin: China HS Code: 8517622100
Port: Shenzhen, China Type: Optical Line Terminal
Wiring Devices: ODF Certification: ISO
Condition: New Item 1: Ma5608t Olt 1 Mcud 1 Mpwc
Item 2: Ma5608t Olt 1 Mcud 1 Mpwd
High Light:

1mpwc 1gpfd Optic Line Terminal

,

1mpwc 1gpfd OLT Optical Line Terminal

,

1gpfd 1mcud1 Optic Line Terminal

Product Description

Huawei MA5608T equipped with 1xMCUD1 (2xGE SFP+2xGE/10GE SFP+ Uplink, include 2 GE SFP Module) 1xMPWC DC Power Module, 1xGPFD C+


Comes with 2 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package

MA5608T chassis

1 MCUD1 equipped, switching capacity 256Gbit/s active/standby mode

1 MPWC equipped, connect Power Board -48 V DC

1 GPFD equipped, with 16 C+ SFP Module

MA5608T Single 10GE DC 16GPON C+ bundle configuration, is recommended board bundle provided by hongking communication, it has most common service type and ordinary.  welcome to contact  us for customized configuration you need.



Huawei SmartAX MA5608T GPON OLT, 19 inch, with 2U height  2 service slots, support EPON, GPON, 10G PON, P2P, xDSL and POTS; H801MABR subrack



Product Name OLT Service Subrack
Brand Huawei
Mode MA5608T
Packing Size 59x38.5x18
Gross Weight 12
Service Board Slots 2
Interface Board MCUD+GPFD

We can custom made MA5608T OLT As Belowing Specification
Pls Confirm with our saler the specification you need
MA5608T OLT 1xMCUD + 1xMPWC
MA5608T OLT 1xMCUD + 1xMPWD
MA5608T OLT 1xMCUD1 + 1xMPWC
MA5608T OLT 1xMCUD1 + 1xMPWD
MA5608T OLT 2xMCUD + 1xMPWC
MA5608T OLT 2xMCUD,1xMPWD
MA5608T OLT 2xMCUD1 + 1xMPWC
MA5608T OLT 2xMCUD1 + 1xMPWD

MA5608T is an integrated fiber-copper access device, and can serve as a mini-OLT or mini-DSLAM.
The MA5608T, if serving as a mini OLT, supports GPON, 10G GPON, and P2P access modes. It can be installed at a residential district or a street side, which reduces the usage of ODN backbone optical cables, lowers the ODN deployment cost and difficulty, and minimizes the CO equipment room space.
The MA5608T, if serving as a mini-DSLAM, supports ADSL2+, VDSL2, SHDSL, and POTS access modes and provides Internet access, voice, and video services.
Figure 4 shows the appearance of the MA5608T.
Figure 4 Appearance of the MA5608T configured with the xPON boards


Item MA5608T
Board configuration 2 slots for control boards
2 slots for service boards
1 slots for the power interface board.
Switching capacity of the backplane bus 720 Gbit/s
Supported control board and its switching capacity MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
System Layer 2 packet forwarding rate MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode
Switching/Forwarding delay Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
BER in full load BER of a port when the port transmits data in full load < 10 e-7
System reliability specifications System: redundant configuration.
System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 45 years.
NOTE:
Due to different network environments and different boards used by devices, the above-mentioned MTBF (45 years) of the MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers.
Maximum number of ADSL2+ ports in a subrack 128
Maximum number of VDSL2 ports in a subrack 128
Maximum number of EFM SHDSL ports in a subrack 64
Maximum number of TDM SHDSL ports in a subrack 32
Maximum number of POTS ports in a subrack 128
Maximum number of ISDN BRA ports in a subrack 64
Maximum number of ISDN PRA ports in a subrack 64
Maximum number of GPON ports in a subrack 32
Maximum number of 10G GPON ports in a subrack 8
Maximum number of P2P FE ports in a subrack 96
Maximum number of P2P GE ports in a subrack 96
Operating environment Operating temperature: -40°C to +65°C
Operating humidity: 5% RH to 95% RH
Atmospheric pressure: 61 kPa to106 kPa
Altitude: ≤ 4000 m
