3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector
3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector
3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector
Contact Now

3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: OEM
Certification: CE ROHS Anatel Model Number: ZTE HK719

Detail Information
PON Type: XPON GPON EPON Port: 1GE 3FE 1TEL 2.4ghz WiFi
Optical Connector: SC UPC SCAPC Optional Power Supply: 12V 1.0A
Application: FTTH FTTB FTTX Network Compatible With: FiberHome OLT / HUAWEI OLT / ZTE OLT / OEM OLT
Firmware: English Firmware Antenna: 3dbi
High Light:

12V 1.0A GPON ONU ONT

,

3dbi GPON ONU ONT

,

3dbi ZTE Chipset onu and ont

Product Description

ZTE Chipset HK719 GPON ONU ONT FTTH 1GE 3FE 1TEL 2.4g compatible with HUAWEI ZTE Fiberhome OLT

S



1. Overview

  • HK719 is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services.
  • HK719 is based on mature and stable, cost-effective XPON technology.
  • HK719 adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X



2. Functional Feature

  • Support GPON mode and switch mode automatically
  • Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
  • Support IPv4 and IPv6 dual mode
  • Support 2.4G WIFI and Multiple SSID
  • Support LAN IP and DHCP Server configuration
  • Support Port Mapping and Loop-Detect
  • Support Firewall function and ACL function
  • Support IGMP Snooping/Proxy multicast feature
  • Support TR069 remote configuration and maintenance
  • Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification

Technical item Details
PON Interface 1 GPON BOB (Bosa on Board)
Receiving sensitivity: ≤-28dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/UPC Connector
Design Scheme RTL9603C+RTL8192FR BOB(RTL8290B)
Chip Spec CPU 950MHz,DDR2 128MB
Flash SPI Nor Flash 16MB
LAN Interface 1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED 9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4
Push-Button 3,For Function of Reset, WLAN, WPS
Operating Condition Temperature: 0℃~+50℃
Humidity: 10%～90%(non-condensing)
Storing Condition Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply DC 12V/1A
Power Consumption ≤6W
Dimension 155mm×92mm×34mm(L×W×H)
Net Weight 0.24Kg




4. Panel lights Introduction

Pilot Lamp Status Description
WIFI On The WIFI interface is up.
Blink The WIFI interface is sending or/and receiving data (ACT).
Off The WIFI interface is down.
WPS Blink The WIFI interface is securely establishing a connection.
Off The WIFI interface does not establish a secure connection.
PWR On The device is powered up.
Off The device is powered down.
LOS Blink The device doses not receive optical signals or with low signals.
Off The device has received optical signal.
PON On The device has registered to the PON system.
Blink The device is registering the PON system.
Off The device registration is incorrect.
LAN1~LAN4 On Port (LANx) is connected properly (LINK).
Blink Port (LANx) is sending or/and receiving data (ACT).
Off Port (LANx) connection exception or not connected.

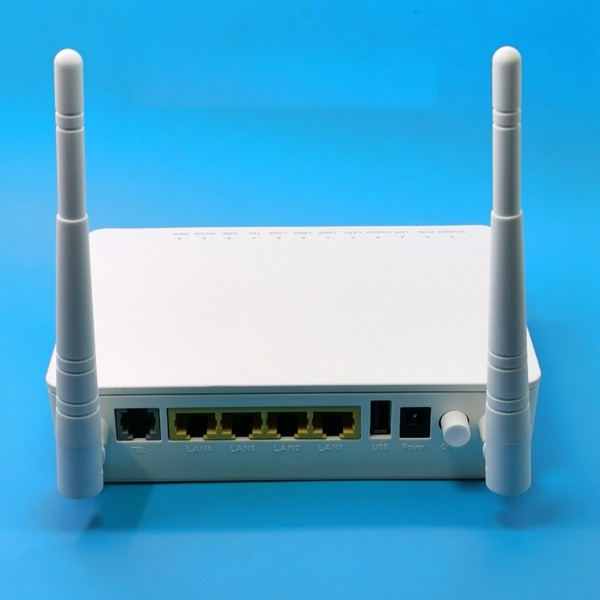

5. Appearance

3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 0

3dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 13dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 23dbi 12V 1.0A ZTE Chipset HK719 GPON ONU ONT SC UPC SC APC Connector 3



6. Application

  • Typical Solution:FTTH(Fiber To The Home)
  • Typical Business:INTERNET,IPTV,WIFI etc

FAQ

1. Can we get a lower price? Any Discount?

Yes, price is not a problem, everything could be negotiated based on the quantity.

2. We are new in this PON fields, can you help me and recommend me some items?

Yes, of course. It is our pleasure to help you with it.

You only need to offer us more details about your application.

3. OEM/ODM Service is available?

Yes, We have strong ability to offer customers ODM&OEM products of highest quality.

4. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
