1GE 2FE WiFi EPON ONU
1GE 2FE WiFi EPON ONU
1GE 2FE WiFi EPON ONU 1GE 2FE WiFi EPON ONU 1GE 2FE WiFi EPON ONU
Contact Now

1GE 2FE WiFi EPON ONU

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: OEM
Certification: CE ROHS Anatel Model Number: HG8546M EG8141A5

Detail Information
Ports: 1GE+1FE+1TEL+2.4G PON Port: XPON GPON EPON
System Power Supply: 11~14 V DC, 1.5 A Antenna Gain: 5dBi
Gross Weight: 230g Type: Gpon Epon Xpon Onu
Application: FTTH FTTB FTTX Network Power Adapter Input: 100~240 V AC, 50/60 Hz
Package Size: 168mm*130mm*28mm Module Type: Class B+ SC/APC
Highlight:

155mm 1GE 2FE WiFi EPON ONU

,

155mm WiFi EPON ONU

,

113mm WiFi Xpon ONU

Product Description

1ge 2fe Xpon Ftth Onu Gpon Fiber Optic Router Wifi Internet Optic Modem Gpon Epon Onu Price



This WiFi EPON ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.This WiFi EPON ONU is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.



Features:
* Support EPON/GPON mode and switch mode automatically
* GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard
* GPON:8 T-CONTs,32 GEM Ports
* Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance
* Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc
* Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
* Support PPPoE/ Static IP/ DHCP
* Support IPv4, IPv6 and IPv4/IPv6
* Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
* Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping
* Qos supports PQ, WRR, and CAR queue scheduling
* Provide 300Mbps 2.4GHz Wireless interface,2T2R external antenna, support multiple SSID Settings,
* Support DDSN, ALG, DMZ and UPNP

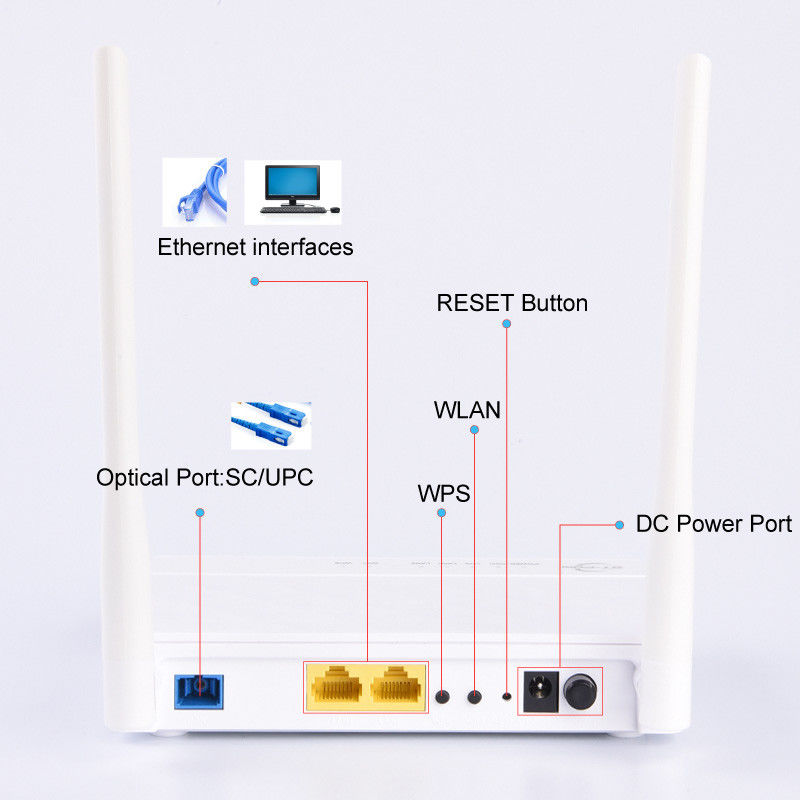

Hardware Specifications
Size(L*W*H)
155mm (L) *113mm (W) *28mm (H)
Optical signal access
1*GPON/EPON
User interface
1GE+1FE+2.4G WLAN
Indicator light
POWER,PON,LOS,LAN1,LAN2,,WIFI,WPS
Button
Power switch Button, Reset Button, WLAN Button, WPS Button
Weight
192g
Power adapter input
100V～240V AC,50Hz～60Hz
PowerSupply requirement
12V DC,1.5A
Power consumption
<10w
Working temperature
-10°C ~ +45°C
Environment humidity
5% ~ 95% (Non-condensing)
PON Interface
Module type
Class B+ SC/UPC
Working wavelength
up 1310nm,down 1490nm
TX Optical power value
0.5～4dbm
RX Optical power sensitivity
-28dBm
Transmission distance
0～20km
Transmission rate
GPON:Up 1.244Gbps；down 2.488Gbps
EPON:Up 1.244Gbps；down 1.244Gbps
Ethernet interface
Interface type
2*RJ45
Interface parameters
1*10/100/1000Mbps and 1*10/100Mbps
Wireless
Working mode
IEEE 802.11 b/g/n
Antenna pattern
External 2T2R External antenna
Antenna gain
5dBi
Wireless bandwidth
Support 20MHz/40MHz
Interface rate
Maximum rate 300Mbps
SSID
Up to 4 SSID broadcasts are supported
