| Minimum Order Quantity : | 50pcs | Price : | Negociatable |
|---|---|---|---|
| Packaging Details : | Carton Box | Delivery Time : | 7-15days |
| Payment Terms : | T/T,Western Union | Supply Ability : | 10000pcs/Week |
| Place of Origin: | China | Brand Name: | OEM |
|---|---|---|---|
| Certification: | CE ROHS Anatel | Model Number: | HG8546M EG8141A5 |
|
Detail Information |
|||
| Use: | FTTH | Product Name: | 4GE+1POTS+WIFI |
|---|---|---|---|
| Function: | Fiber Signal Transmission | Interface Protocol: | E1,FE,GE,STM-1,STM-4,STM-16 |
| Accessories: | Adapter 12V | No. Of Fiber: | 12. |
| Highlight: | 4LAN WiFi EPON ONU,1 voice WIFI EPON ONU,2 Antenna XPON Huawei HG8546M |
||
Product Description
2020 XPON Huawei HG8546M GPON 4LAN 1voice WIFI 2 Antenna best price EG8141A5 English firmware EPON HG8010H HG8310M HG8120C GPON
1. Product description of HG8546M

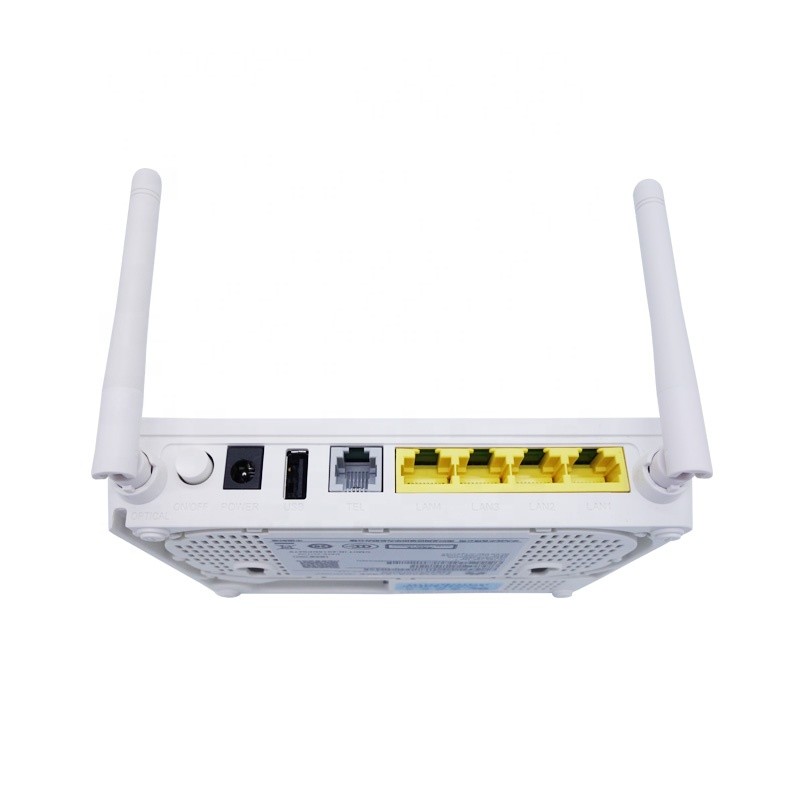

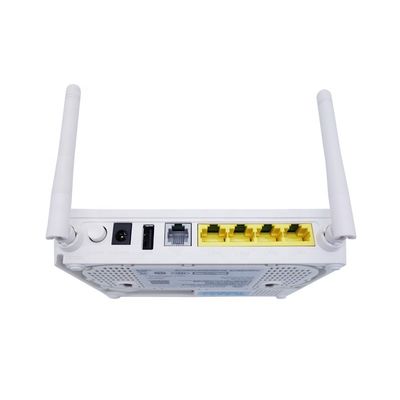

The EchoLife HG8546M, an optical network terminal (ONT), is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. The H8546M provides 1* POTS ports, 1*GE+3* FE auto-adapting Ethernet ports, and 2* Wi-Fi port. The H8546M features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the H8546M provides a perfect terminal solution and future oriented service supporting capabilities for FTTH deployment.
2. Product parameter of HG8546M
| Model | Internet Ports | Voice(tel) | Router (PPPOE) | Wifi | Firmware language |
| HG8546M | 4FE | 1 | support | support | English |
| Power plug:EU,AU,AM,UK etc | Noted: with Chinese manual | ||||
3. Products feature and application of HG8546M
Maintenance features
* Local management using Web and remote management using TR069 and OMCI
* Optical power monitoring
* 802.1ag Ethernet OAM
* Loop-line test of POTS ports,call emulation and PPPoE dialup emulation
GPON features
* Class B+ optical module
* Security authentication mode: SN,
password or SN+password
* Upstream/downstream FEC
Routing features
* NAT function
* Internet, IPTV and VoIP services are automatically bound to ONT ports
* Virtual server, port trigger, DMZ,and DDNS
Reliability features
* Dual systems for software protection
* Type B protection and rogue ONT detection
* Lithium battery backup and backup battery monitoring
Voice features
* SIP and H.248 protocols
* Media stream and signaling stream separation
Multicast features
* IGMP V2&V3 snooping/IGMP proxy
Wi-Fi features
* 802.11b/g/n, certified by the Wi-Fi Alliance
4. Product details of the HG8546M
* Dimensions(W x D x H):250 mm x 185 mm x 35 mm
* Port:1POTS+1GE+3FE+1USB+1Wi-Fi
* Average power consumption:8 W
* Operating environment:Temperature: 0℃~+40℃;
* Humidity: 5%–95%, non-condensing
* Power supply:Adapter input: 100–240 V AC, 50–60Hz;
* Adapter output: 11–14 V DC, 1 A
* Weight:About 500g (including the power adapter)
