| Minimum Order Quantity : | 100 | Price : | 23us$-29us$ |
|---|---|---|---|
| Packaging Details : | Carton box | Delivery Time : | 15days |
| Payment Terms : | T/T, Western Union | Supply Ability : | 1000pcs/week |
| Place of Origin: | China | Brand Name: | OEM ONT CATV |
|---|---|---|---|
| Certification: | Rosh | Model Number: | HK732 |
|
Detail Information |
|||
| Product Name: | ONT CATV XPON | Type: | CATV ONT |
|---|---|---|---|
| Use: | FTTH Network | Wavelength: | TX: 1310nm, RX: 1490nm |
| Power Input: | 12V 1.5A | WiFi: | 2.4G |
| Highlight: | 12V 1.5A XPON ONT,2.4G WiFi XPON ONT,FTTH Wireless Modem |
||
Product Description

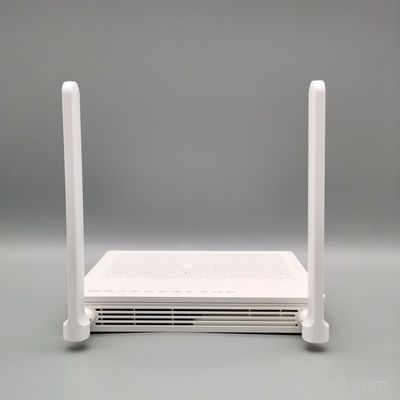

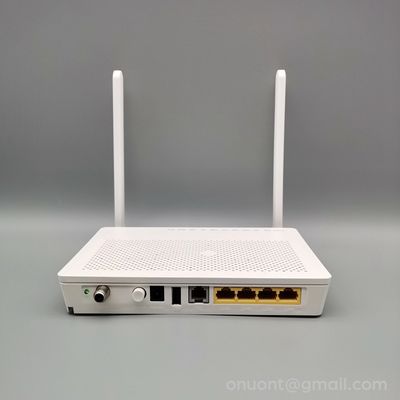

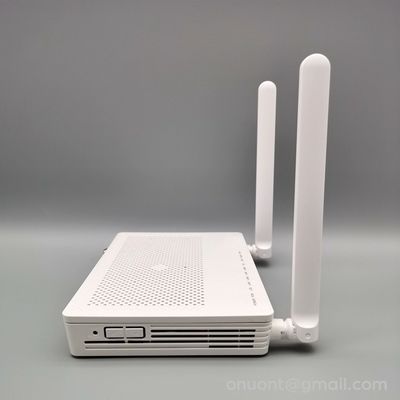

12V 1.5A XPON ONT
WiFi ONT CATV XPON HK729 1GE 1FE 1POTS Economic XPON FTTH Modem Nework Terminal
HK732 Model XPON ONT CATV is a user terminal which has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
Specification
|
Product Specification
|
|
|
Size(L*W*H)
|
192mm (L) *148mm (W) *35mm (H)
|
|
Optical signal access
|
1*GPON/EPON
|
|
User interface
|
1GE+3FE+2.4G WLAN+1VOIP+1USB+CATV
|
|
Indicator light
|
POWER,PON,LOS,LAN1,LAN2,LAN3,LAN4,USB,2.4G,WPS,TEL,CATV
|
|
Power adapter input
|
100V～240V AC,50Hz～60Hz
|
|
PowerSupply
|
12V DC,1.5A
|
|
Power consumption
|
<10w
|
|
Module type
|
SC/APC
|
|
Working wavelength
|
up 1310nm,down 1490nm
|
|
TX Optical power value
|
0.5～4dBm
|
|
RX Optical power sensitivity
|
-28dBm
|
|
Transmission rate
|
EPON:Up 1.244Gbps；down 2.488Gbps EPON:Up 1.244Gbps；down 1.244Gbps
|
|
Interface type
|
2* RJ45
|
|
Interface parameters
|
1*10/100/1000Mbps and 3*10/100Mbps
|
|
Working mode
|
IEEE 802.11 b/g/n
|
|
Antenna gain
|
5dBi
|
|
CATV Interface
|
|
|
Optical receiving wavelength
|
1550±10nm
|
|
Optical reflection loss
|
≥45dBm
|
|
RF, WDM, optical power
|
+2~-15dBm
|
|
RF frequency range
|
47~1000MHz, RF output impedance: 75Ω
|
|
RF output level
|
78dBuV
|
|
AGC range
|
0~-12dBm
|
|
MER
|
≥32dB@-15dBm
|
1. Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2. How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
We are the key distributor of Huawei,ZTE,Fiberhome, who get special offer and technical support from them. Each model has S/N number and we will send you the S/N list to you after shipping .You can confirm with manufactures.
You will get competitive price and professional technical supports.
3. Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4. How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
