| Minimum Order Quantity : | 100pcs | Price : | 18us$-20us$ |
|---|---|---|---|
| Packaging Details : | Carton box | Delivery Time : | 7-15days |
| Payment Terms : | T/T, Western Union | Supply Ability : | 10000pcs/week |
| Place of Origin: | China | Brand Name: | OEM CATV ONT |
|---|---|---|---|
| Certification: | CE Rosh | Model Number: | HK729 XPON CATV |
|
Detail Information |
|||
| Specification: | 1GE 1FE 1TEL | Pon Type: | XPON |
|---|---|---|---|
| Color: | White | Power Adapter: | EU Power / US Power |
| WiFi: | Without WiFi | Dimensions: | 150*10*20mm |
| Highlight: | XPON ONT Modem,1TEL XPON ONT Modem,1FE WiFi ONT |
||
Product Description

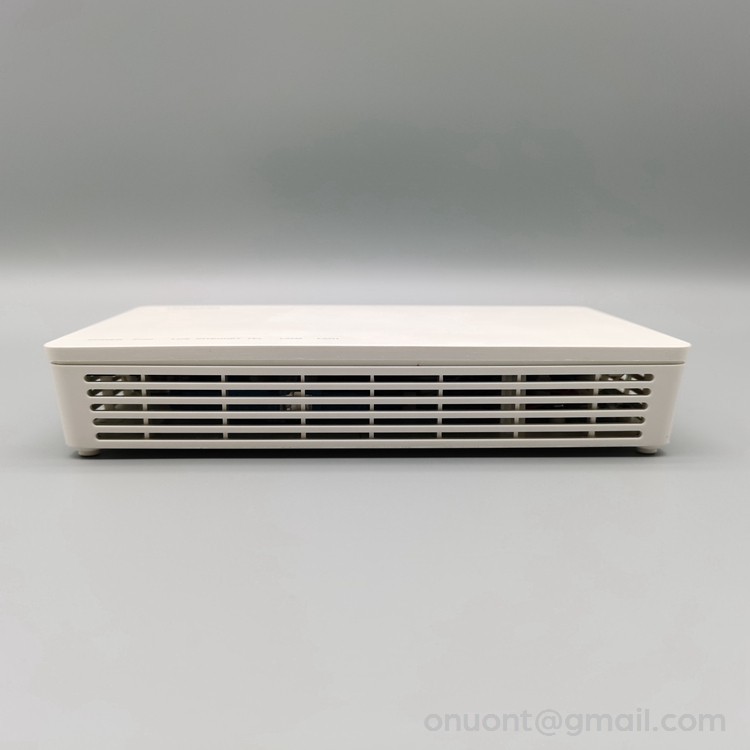

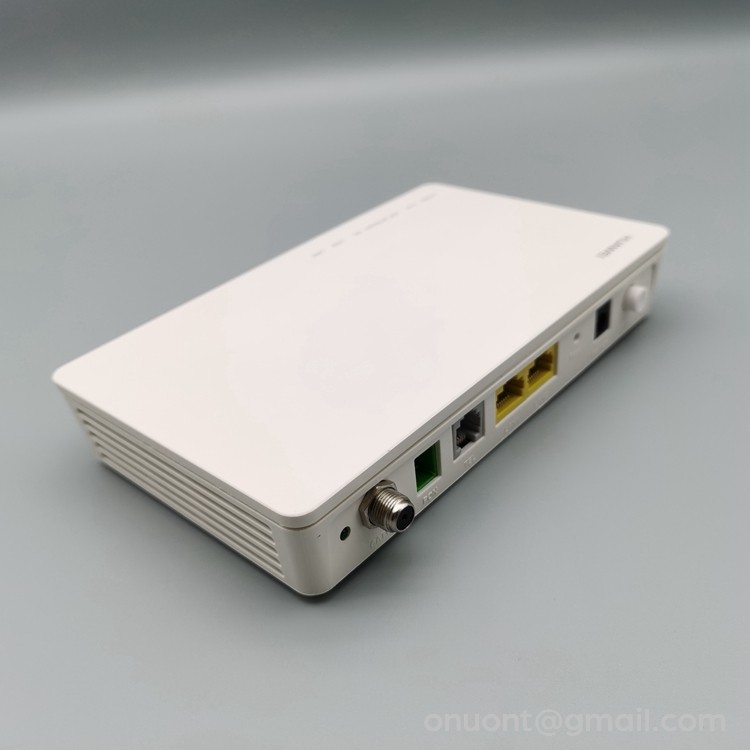

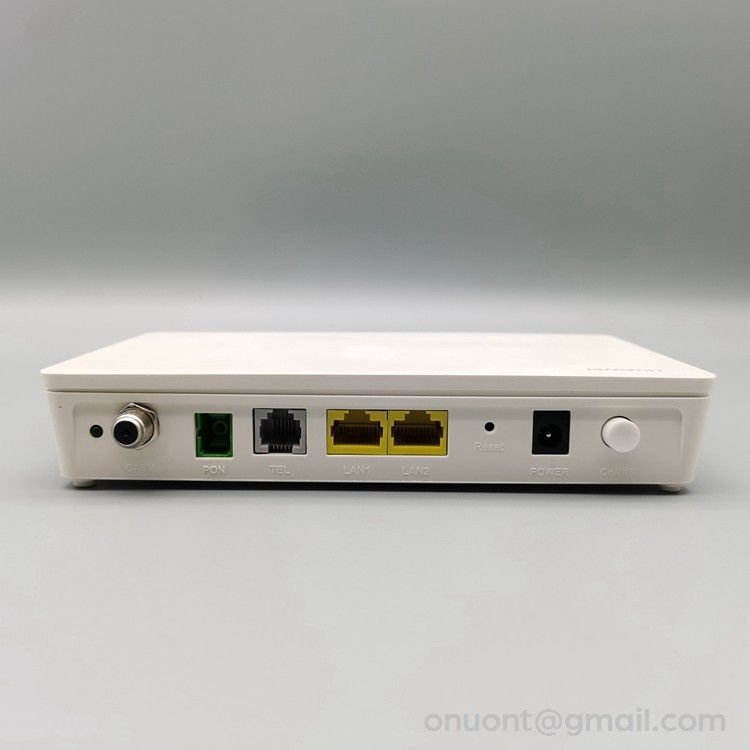

1FE XPON ONT Modem
WiFi ONT CATV XPON HK729 1GE 1FE 1POTS Economic XPON FTTH Modem Nework Terminal
1. 1GE+1FE+1POTS+CATV GPON/EPON ONU is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by Queenton, The carrier-class FTTH application provides data service access.
2. The ONU is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT.
3. The ONU adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0 and GPON Standard of ITU-TG.984.X
Featues:
1. SupportsDual Mode (can access GPON/EPON OLT).
2. SupportsSFU and HGU of EPON CTC 3.0 standard.
| Technical Item | Details |
| PON interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm, Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
| CATV Interface | RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV(-7dBm optical input) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
| LED | 6 LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN |
| Push-Button | 2, for Function of Power on/off, Reset |
| Operating condition | Temperature : 0℃～50℃ Humidity :10%～90%(non-condensing) |
| Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <3W |
| Net Weight | <0.2kg |
