Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
| Minimum Order Quantity : | 1000 | Price : | 15-20us$ |
|---|---|---|---|
| Packaging Details : | Carton paper box | Delivery Time : | 15-20days |
| Payment Terms : | T/T, Western Union | Supply Ability : | 10000pcs/month |
| Place of Origin: | China | Brand Name: | HUAWEI |
|---|---|---|---|
| Certification: | Rosh CE | Model Number: | HG8012H |
|
Detail Information |
|||
| Products Description: | 1GE CATV XPON ONT | Color: | White |
|---|---|---|---|
| Downlink: | 1000MB | Power Adapter: | EU,US,UK,AU |
| Power Supply: | 12V 0.5V | PON TYPE: | XPON |
| Highlight: | HG8012H XPON ONT,Ftth XPON ONT,HG8012H Fiber Router Modem |
||
Product Description

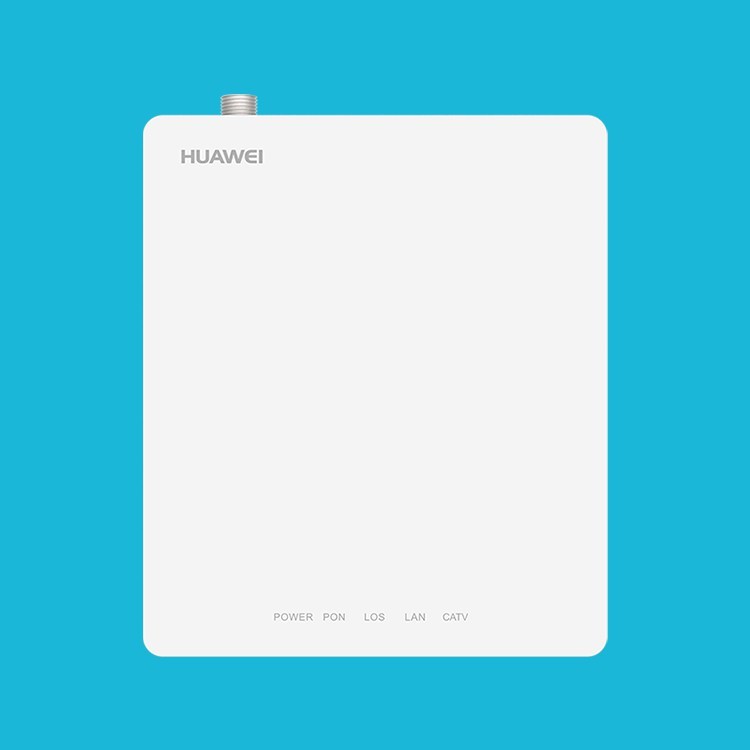

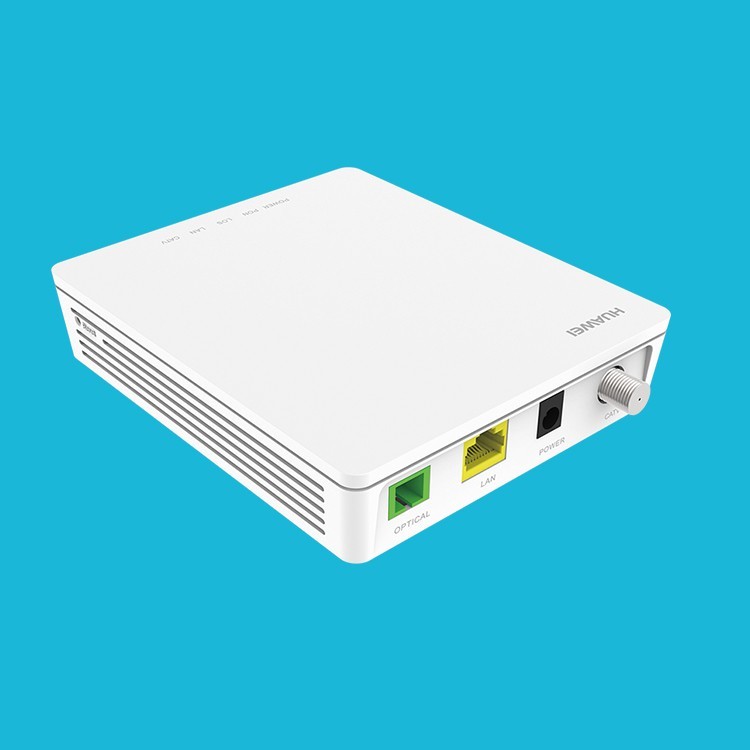

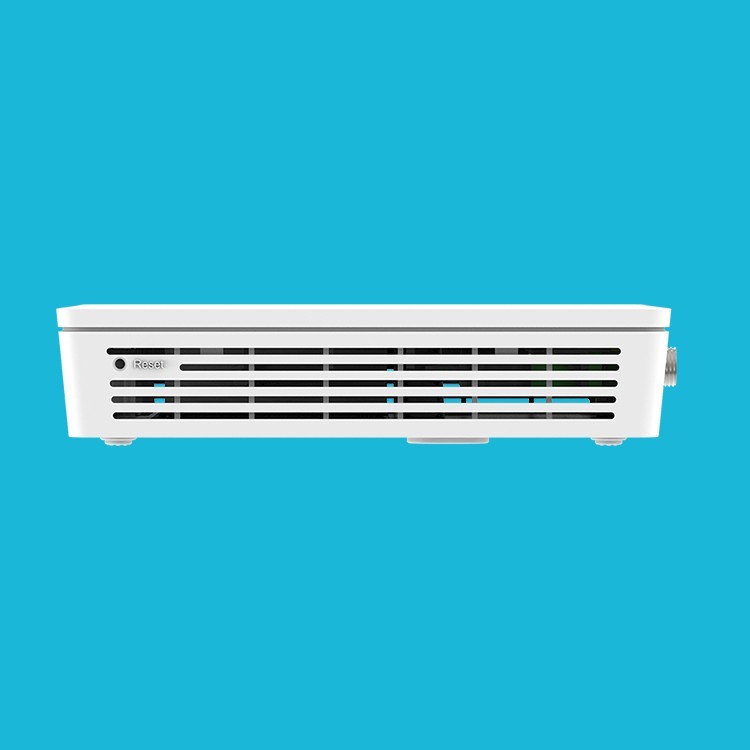

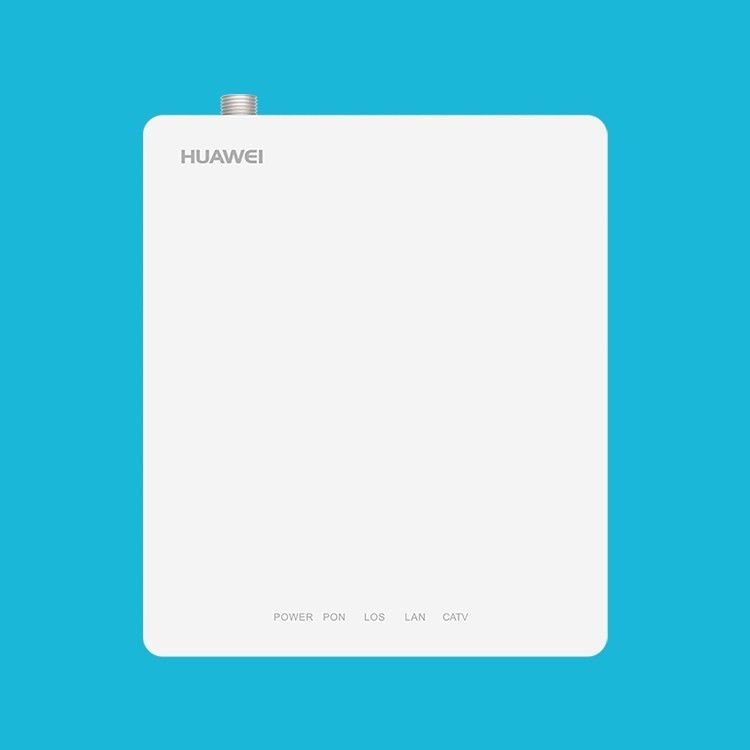

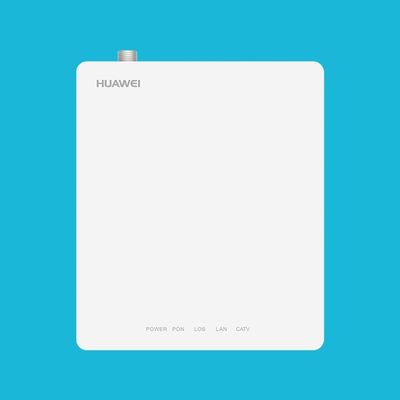

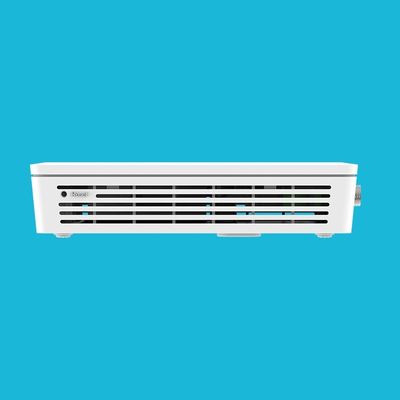

HG8012H XPON ONT
Ftth HG8012H Gpon 1ge catv XPON Ont Onu 1ge 1fe Rf Onu Wdm Fiber Router Modem Network Unit
ONT Manufacture FTTH 1GE CATV GPON ONU with RF (GPON and EPON dual mode) HGU ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access and CATV, video surveillance and other requirements. It is based on Gigabit XPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. ONT Manufacture FTTH 1GE ZTE CATV GPON ONU with RFis fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.FTTH Fiber Optic Equipment 1GE+CATV GPON ONU WITH RF PTF2331 can also be applied to a wide temperature environment, and also has a powerful firewall function.
Features: (ONT Manufacture FTTH 1GE CATV GPON ONU with RF)
Ø XPON HGU ONU, bridging and routing modes can be set
Ø Dual mode ONU compatible with popular EPON and GPON OLT
Ø Support loop detection, IGMP, IGMP snooping
Ø 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
Ø Support port speed, support for storm suppression
Ø Triple Solution Data, Voip and Cable TV(RF bandwidth:45~1000MHz, AGC function)
Ø Support Telnet, CLI, OMCI/OAM and Web management
Ø Support NAT, Firewall function
Ø Support remote software upgrade
Specificatio
| Items | Unit | Specifications |
| PON standard. | EPON IEEE802.3ah, GPON ITU-T G.984.x | |
| Optical interface | SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+)Receiving sensitivity: ≤-28dBmTransmitting optical power: 0~+4dBmTransmission distance: 20KM | |
| Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
| Wavelength | nm | Tx1310, Rx 1490, CATV 1550 |
| Interface | data |
1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| Indicator | LED | POWER,LOS,PON,LAN,CATV |
| Operating condition | ℃ | Operating temp: -5 ~ +55 |
| Storing condition | ℃ | Storing temp: -30 ~ +60 |
| Humidity | % | 10~90(non-condensing) |
| Power supply | V | DC 12V,0.5A adapter |
| Power consumption | W | ≤6 |
| Dimension | mm | 111×92×30(L×W×H) |
| Net weight | Kg | 0.13 |
