| Minimum Order Quantity : | 1pcs | Price : | 880us$-1000us$ |
|---|---|---|---|
| Packaging Details : | Carton box with Pallet | Delivery Time : | 7-15days |
| Payment Terms : | Western Union, T/T | Supply Ability : | 10pcs/week |
| Place of Origin: | China | Brand Name: | ZTE |
|---|---|---|---|
| Certification: | CE Rosh | Model Number: | C300 OLT 10GE |
|
Detail Information |
|||
| Product Name: | C300 OLT Uplink 10GE | Type: | Zte Olt Zxa10 |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Chassis: | Black Color |
| Service Slots Remain: | 13U | GPON Ports: | 16 |
| Highlight: | OLT Optical Line Terminal,OLT Optical Line Terminal |
||
Product Description

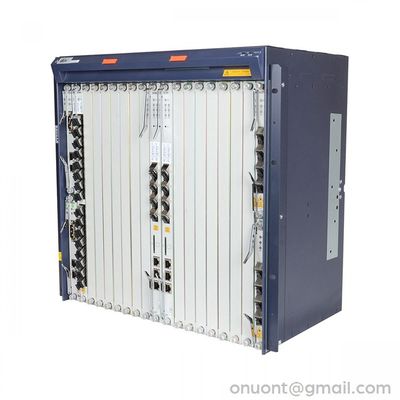

ZTE ZXA10 C300 Chassis with 2xSCXN, 2xHUVQ, 2xPRWG, 1xGTGH C+ SFP Module
Comes with 2PCS DC power cables, 1PCS earth cable
ZTE ZXA10 C300 19-inch Chassis
1+1 SCXN equipped, 4 GE uplink interfaces Main Control Board
1+1 PRWG equipped, 30A power board
1+1 HUVQ equipped, 2*10GE, 2*GE Uplink Board
1 PCS GTGH 16-Port GPON OLT Interface Board with 16 C+ SFP Module
1 Slot Occupied, 13 Slots Remain
1 common interface card slot
Main Control Board | SCXN 2 |
GPON Ports | 16 |
Service Slots Remain | 13 |
Power Supply Mode(W) | DC power supply: -48V+/-20%, -60V+/-20% |
Device Specifications | |
Dimensions (mm) | 443.7 (H) × 482.6 (W) × 270 (D) |
Weight(kg) | 12.5 (empty) 34.2 (full configuration) |
Product Features
Unified platform architecture
Delivers integrated access for GPON,EPON P2P,10G-EPON,XG-PON1 and TWDM-PON,achieves initial investment protection and smooth evolution.
Excellent capability
Fully meets the high-bandwidth network requirements with high system integration, large backplane bandwidth,high-density service cards,and non-blocking switching capability.
Higher reliability and protection
Provides boards redundancy and hot swappable,supports type B and type C protection for PON downlink and RSTP/UAPS/ERPS/LACP for uplink.
Perfect clock/time synchronization
Provides BITS,1PPS+ToD,IEEE 1588V2 and synchronous Ethernet to deliver comprehensive time and clock synchronization.
Powerful QoS control and TDM capability
Supports three-level H-QoS based on service provider,user and service,provides TDM service bearing with STM-4,STM-1,E1 and T1.
Eco-friendly design
Supports multiple ways to lower the power consumption and complies with the Europe CoC, RoHS standards.
Product application
· FTTH Network Application
The C300 supports the fiber to the home (FTTH) network application.It can be connected to the ONT in the user's house through the PON port or provide the P2P optical access service through the FE or GE port.
· FTTB Network Application
The C300 supports the fiber to the building (FTTB) network application,and is connected to the ONU (MDU or ONT) that is deployed in the corridor through the PON port.
· FTTC Network Application
The C300 supports the fiber to the curb (FTTC) network application,connected to the ONU that is deployed at the curb through the PON port,or connected to the DSLAM that is deployed at the curb through the GE optical port.
· Centric Management for GE Remote Extended Subracks Networking
· Leased Line Service (Enterprise Access)
· Leased Line Service (Base Station Access)
· Copper Access Network Application
The C300 supports multiple copper access modes such as ADSL2+,VDSL2,and SHDSL.
· Voice Service Network Application
The C300 supports the voice service network application.The C300 can function as an AG (Access Gateway) in the softswitch network to provide the voice service and transmit the voice service to the IMS network. In addition, C300 supports the TDM SHDSL access, which is applicable to reconstruction of the traditional voice network.
Configurations Options for ZXA10 C300
| GPON / EPON OLT ZXA10 C300 10U with 14 Slot for Pon Board | |
| Configuration options | |
| ZXA10 C300 | Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+GUFQ; accessories |
| ZXA10 C300 | Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+2*GUFQ; accessories |
| ZXA10 C300 | Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+HUTQ(or HUVQ); accessories |
| ZXA10 C300 | Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+2*HUTQ(or HUVQ); accessories |
| ZXA10 C300 | Chassis+Fan+2*SCXM(or SCXN)+2*PRWG+HUTQ(or HUVQ)+GUFQ; accessories |
| ZTE OLT Option Part(Service boards) | |
| GTGO | 8 ports GPON board with 8 B+ modules. |
| GTGO | 8 ports GPON board with 8 C+ modules. |
| GTGO | 8 ports GPON board with 8 C++ modules. |
| GTGH | 16 ports GPON board with 16 B+ modules. |
| GTGH | 16 ports GPON board with 16 C+ modules. |
| GTGH | 16 ports GPON board with 16 C++ modules. |
| GTTO | 8 ports 10G GPON board with 8 10G GPON modules |
| GTXO | 8 ports 10G GPON board with 8 10G GPON modules |
| ETGO | 8 ports EPON board with 8 modules. |
| ETGH | 16 ports EPON board with 16 modules |
| ETTO | 8 ports 10G EPON board with 8 10G EPON modules |
| GUSQ | 2*GE optical + 2*GE/FE RJ45 uplink card |
| GUFQ | 4*GE/FE optical interface Ethernet uplink card |
| HUTQ/HUVQ | 2 ports 10GE and 2 ports GE optical interface Ethernet uplink card |
| SMXA/1 | Tri-functional card for C320 , the switching, control card & GE uplink |
| SMXA/3 | Tri-functional card for C320 , the switching, control card & 10GE uplink |
| Parameter | ZTE ZXA10 C300 | |
| Capacity and Performance | Backplane Capacity(bps) | 3.2T |
| Exchange Capacity(bps) | 800G | |
| MAC address capacity | MAX512K | |
| Main control exchange board | 2(main and spare) | |
| Service board | 14 | |
| EPON capacity | single board:8*PON;single chassis:112*PON | |
| typical configuration:224*PON/chassis | ||
| Uplink interface | GE | Single board: 4*GE(4 optical); |
| 4*GE(4 electric); | ||
| 2*GE(optical)+2*10M/100M/1000M(electric); | ||
| Chassis:8*GE,MAX 136*GE | ||
| 10GE | Per board:4*10GE(optical); | |
| Chassis:8*10GE | ||
| User interface | PTP | Per board:16*FE or GE |
| Chassis:16 services slots,256*FE or GE | ||
| TDM interface | E1/T1 | Per card:32*E1/T1; |
| Chassis:16 service slots,512*E1/T1 | ||
| STM-1/STM-4 | Per board:2*STM-1or 1*STM-4; | |
| Chassis:16 service slots,32*STM-1 or 16*STM-4 | ||
| BITS interface | BITS | 2input/1output or 1input/2output |
| Power | 2lineDC(-48V) | |
| DC:-38V~-57V | ||
| Electrical Properties | Dimension(mm) | 19inch chassis 482.6*443.7*270mm |
| 10U(9U insert box+1U fan) | ||
| Weight | 36.6kg(full) | |
| Heat | Fan | |
| Install | Rack | |
Order Guide
(1)AC or Dc power
(2)1.25G uplink or 10G
(3)with what board
Service boards:
8 ports 1G GPON board:GTGO
8 ports 1G EPON board:ETGO
16 ports 1G GPON board:GTGH
16 ports 1G EPON board:ETGH
8 ports 10G GPON board:GTTO/ GTXO
8 ports 10G EPON board:ETTO
