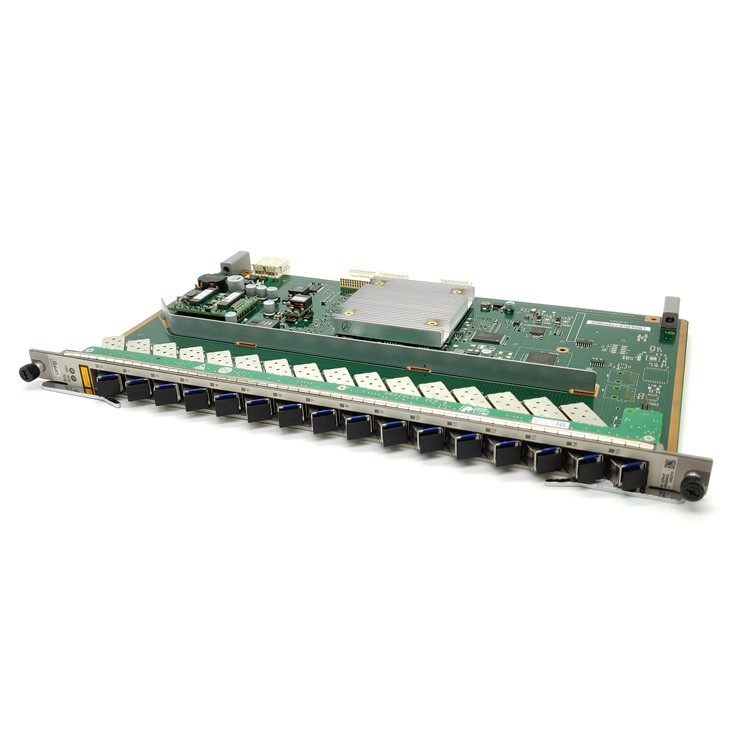

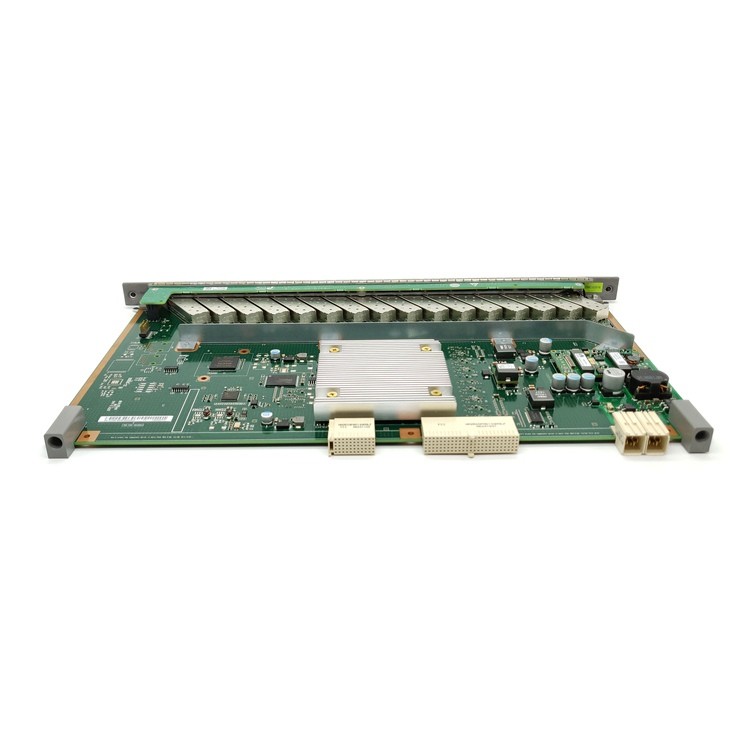

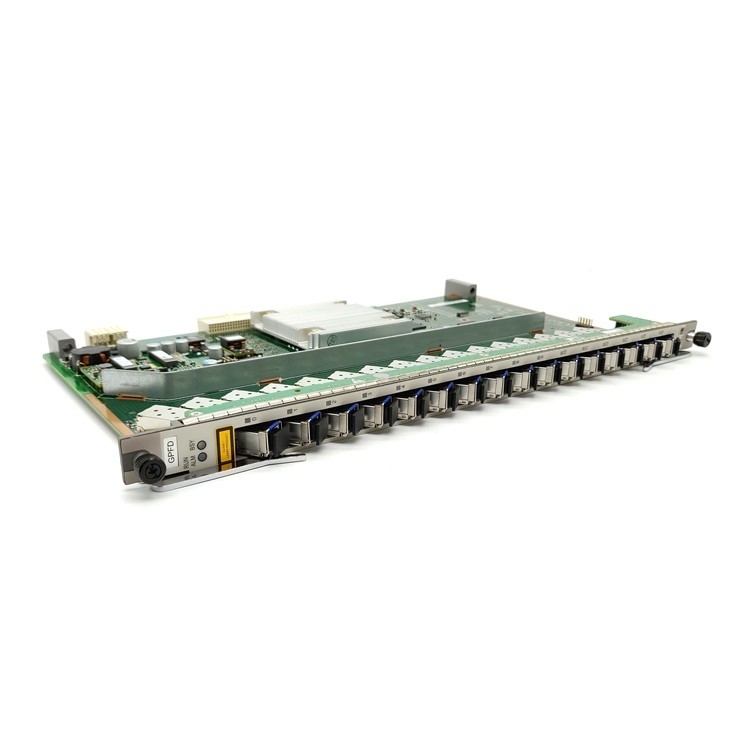

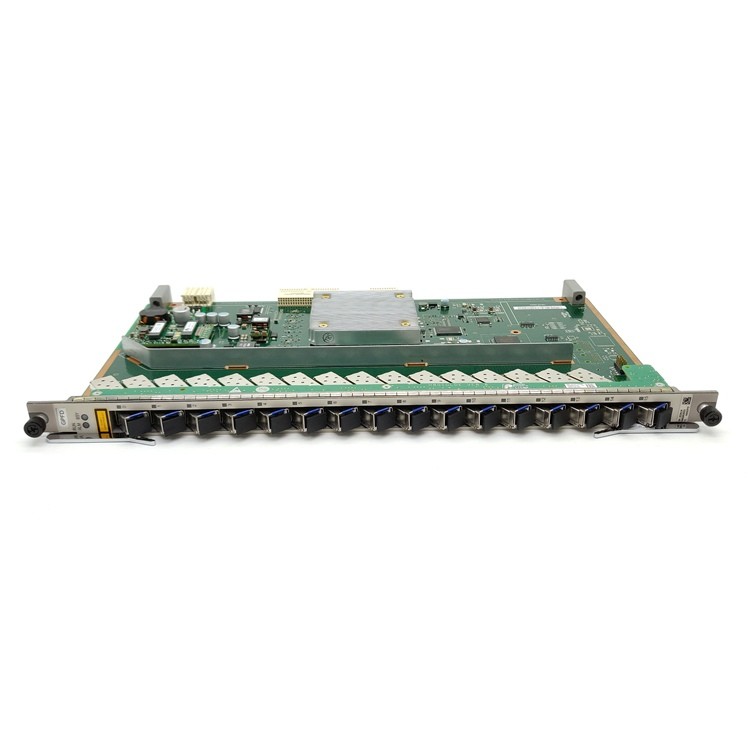

48v GPON Interface Card For HUAWEI OLT MA5680T MA5683T MA5608T

Name: 48v GPON Interface Card For HUAWEI OLT MA5680T MA5683T MA5608T
Brand: huawei
SKU: gpfd
Price: 100 USD
Availability: InStock
Rating: 4.7 (153 reviews)

Minimum Order Quantity :	1pcs	Price :	100us$-1200us$
Packaging Details :	carton box	Delivery Time :	5-8days
Payment Terms :	T/T, Western Union	Supply Ability :	100pcs/month

Place of Origin:	china	Brand Name:	huawei
Certification:	ce rosh	Model Number:	gpfd

Detail Information
Product Name:	Gpfd C+ Line Card	Type:	Gpon Board
Application:	5680t 5683t 5608t	Power Supply:	48v
Wavelength:	RX 1310nm, TX 1490nm,	Pon Mode:	GPON
High Light:	48v GPON interface card , gpon board GPFD Line Card , HUAWEI OLT GPON interface card

Product Description

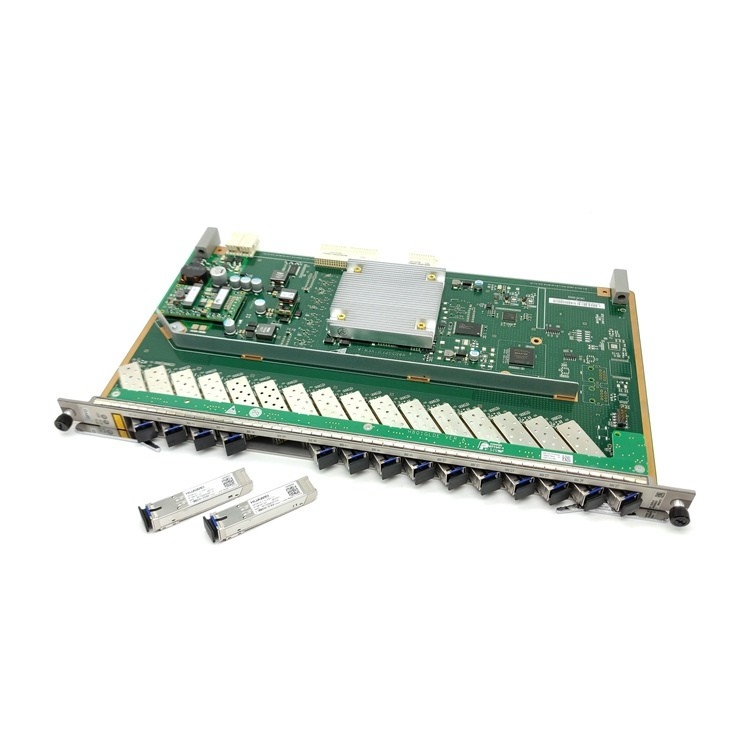

GPON Board GPFD Line Card with B+ C+ C++ SFP Modules For HUAWEI MA5608T MA5680T MA5683T H803GPFD H805GPFD H806GPFD

GPFD is a GPON interface card of Huawei OLT, 16-port GPON OLT Interface Board GPFD works together with the optical network terminal (ONT) to provide GPON access services, each GPFD can maximum connect 16*128 GPON subscribers.

Huawei GPFD Service Board Line Card is 16-port GPON OLT interface board with B+ C+ and C++ SFP module for Huawei SmartAx MA5608T MA5683T MA5680T

GPFD Have Different version H805GPFD / H806GPFD with B+ or C+ SFP module. We Have Huawei GPFD in stock, and can ship to worldwide.

48v GPON Interface Card For HUAWEI OLT MA5680T MA5683T MA5608T 0

GPFD Specification and Datasheet

Huawei GPFD Service Board Product Specification

Brand	Huawei
Model	GPFD
GPON Port	16-GPON Port
Type	C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimum Output Optical Power	C+ Module : 3.00 dBm
Maximum Output Optical Power	C+ Module : 7.00 dBm
Maximum Receiver Sensitivity	C+ Module : -32.00 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	20.00 km
Overload Optical Power	C+ Module : -12.0 dBm
Extinction Ratio	8.2 dB
Dimensions (W x D x H)	22.86 mm x 237.00 mm x 395.40 mm
Power Consumption	H802GPFD : Static: 45 W, Maximum: 73 W
	H803GPFD : Static: 39 W, Maximum: 61 W
	H805GPFD : Static: 26 W, Maximum: 50 W
Maximum Frame Size	2004 bytes
Operating temperature	-25°C to +65°C

GPFD Overview
