English Version MA5680T HUAWEI GPON OLT With PRTE SCUN X2CS 10GE Uplink

Name: English Version MA5680T HUAWEI GPON OLT With PRTE SCUN X2CS 10GE Uplink
Brand: HUAWEI
SKU: MA5680T
Price: 800 USD
Availability: InStock
Rating: 4.8 (173 reviews)

Minimum Order Quantity :	1pcs	Price :	800US$-2500us$
Packaging Details :	carton box	Delivery Time :	5-8workdays
Payment Terms :	T/T	Supply Ability :	10pcs/week

Place of Origin:	CHINA	Brand Name:	HUAWEI
Certification:	CE ROSH	Model Number:	MA5680T

Detail Information
Product Name:	HUAWEI OLT 5680T	Type:	GPOn EPON OLT
Application:	FTTH FTTX	Transmission Distance:	20KM
Power Supply:	48V 50A	Color:	Black
High Light:	English version HUAWEI GPON OLT , MA5680T HUAWEI GPON OLT , 10GE uplink MA5680T HUAWEI OLT

Product Description

As the first aggregation OLT in the industry, The SmartAX MA5680T integrates the aggregation and switching functions, provide the high-density GPON and Ethernet P2P access, abundant GE/10GE ports, high precision clock and strong platform capacity, provide the basic voice, high-speed internet, fluent video, steady TDM and the Ethernet private line services, which can improve the network reliability, reduce the investment in network construction, and reduce the O&M costs.

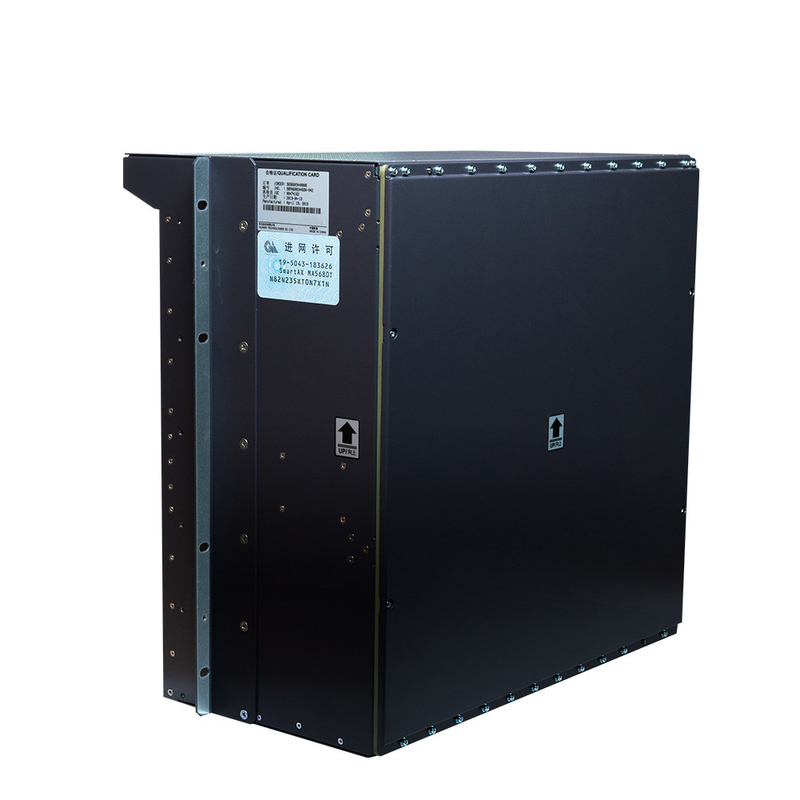

English Version MA5680T HUAWEI GPON OLT With PRTE SCUN X2CS 10GE Uplink 0

Product Parameter

Model No.	MA5680T	MA5683T	MA5608T
Dimension	490275.8447.2mm	442283.2263mm	442233.588mm
Humidity	5%~95% (non-condensing)	5%~95% (non-condensing)	5%~95% (non-condensing)
Operating Environment	-25℃~+55℃	-40℃~+65℃	-40℃~+65℃
Power Supply Parameters	-48V DC input Supports dual power protection	-48V DC input Supports dual power protection	-48V DC input Supports dual power protection Support 220V / 110V AC input
Working Voltage range	-38.4V~-72V	-38.4V~-72V	-38.4V~-72V
Backplane Exchange capacity	3.2Tbit/s	1.5Tbit/s	720Gbit/s
Control Board Exchange Capacity	1920 Gbit/s	960Gbit/s	512Gbit/s
Access Capacity	12810G EPON 6410G GPON 128EPON 256GPON 768*GE	4810G EPON 2410G GPON 48EPON 96GPON 288*GE	1610G EPON 810G GPON 16EPON 32GPON 96*GE
Access Type	Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface
System Performance	Layer 2 / Layer 3 wire-speed forwarding Support static router /RIP/OSPE.MPLS BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock Maximum support 1:256 splitting ratio Maximum support 60KM logical distance

Product feature and application
Aggregate Access	Ultra-high convergence switching capacity, 3.2T backplane capacity, 1920G switching capacity, 512G MAC address capacity
	Ultra-high-density cascade capability, maximum support for 44-channel 10GE or 768 GE access, no additional investment aggregation switch
High Reliability	Highly reliable networking capabilities, support OLT dual hot backup, off-site capacity, upgrade business is not interrupted
	Complete QoS function, support traffic classification management, priority control, with paragraph control. H-QoS functions to meet SLA requirements for diverse business customers.
	End-to end high reliability design, uplink support BFD/Smart Link/LACP redundancy protection, support EPON TypeB / TypeD and GPON TypeB / TypeC line protection
Multi-scene access	A variety of E1 line access, support Native TDM or CESoP / SAToP function
	Support E-LAN function to achieve internal traffic flow based on VLAN to meet the enterprise and campus network applications
	Support IPTV users without convergence access, single-frame support 8000 multicast users and 4000 multicast channels
Smooth Evolution	EPON / GPON / 10G PON / 40G PON common platform to support smooth evolution, to meet the ultra-wideband access
	Support IPv4 / IPv6 dual stack, support IPv6 multicast, to achieve the smooth evolution of IPv4 to IPv6
Green Technology	Unique chip technology, high-density 16 port GPON board power consumption does not exceed 73W
	Support free board automatic power, fan intelligent speed, effectively red
