Description/Introduction of GPON ONU ONT
Ftth epon ont wifi eg8141a5 sc/apc upc gpon onu english firmware

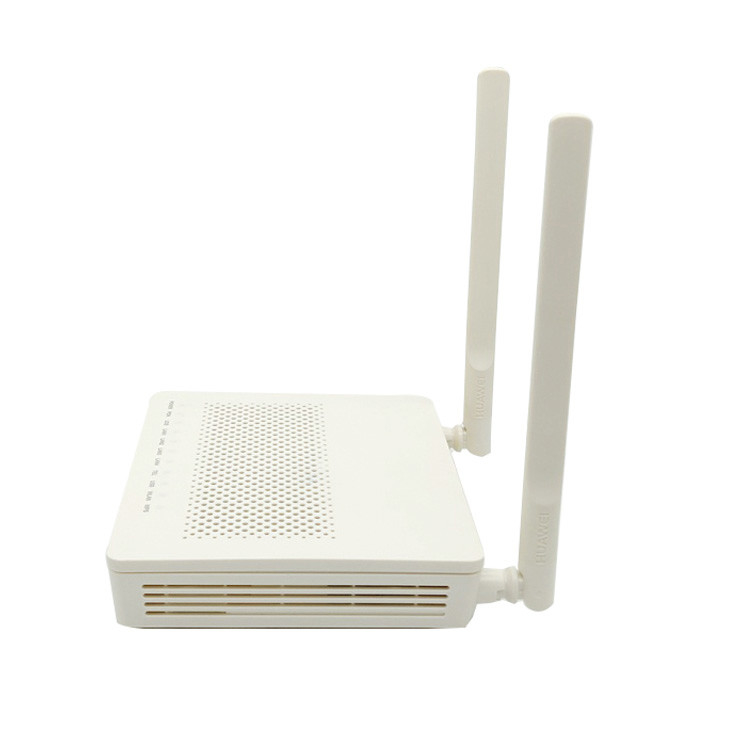

The EchoLife EG8141A5 is a routing-type ONT in the all-optical access solution. It uses the GPON technology to implement ultra broadband access for users, and provides 1GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port. The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
| Model |
Configuration |
Dimension/pcs |
| LAN |
Telephone |
Wifi |
PPPOE |
Firmware |
| EG8141A5 |
1GE+3FE |
1pots |
yes |
yes |
English |
250*185*35mm/0.44kgs |
| Remarks |
External Antenna |
| PON Interface |
1*GPON interface, SC single-mode/single-fibre, uplink 1.25Gbps, downlink 2.5Gbps |
| User Ethernet Interface |
4*FE/GE auto adaptive Ethernet interfaces, RJ45 connectors,1*WIFI |
| Power Interface |
12V DC Power supply An external 12V 1A AC/DC power supplyadapter |
PON Optical
Parameter |
Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1~4dBm Rx Sensitivity: -28dBm
Saturation Optical Power: -3dBm Connector Type: SC
Optical Fiber: 9/125um single-mode fiber |
| Data Transmission Parameter |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 4*100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms |
| Network Management |
Status monitor, Configuration management, Alarm management, Log managem |
Feature of GPON ONU ONT
1. Full compatible with ITU-T G.984.
2. Support port-based rate limitation and bandwidth control
3. Integrated OMCI remote configuration and maintenance function.
4. Support data enscryption, group broadcasting, port Vlan separation, RSTP,etc.
5. Support Dynamic Bandwidth Allocation (DBA)
6. Support ONT auto-discovery/Link detection/remote upgrade of software;
7. Support VLAN division and user separation to avoid broadcast storm;
8. Support power-off alarm function ,easy for link problem detection
9. Support broadcasting storm resistance function
10. Support port isolation between different ports
11. Support ACL and SNMP to configure data packet filter flexibly
12. Specialized design for system breakdown prevention to maintain stable system
13. Support software online upgrading
14. EMS network management based on SNMP ,convenient for maintenance
Our Services
1. Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Warranty: 365days
FAQ
We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
OEM/ODM Service is available?
Yes, V-Solution have strong ability to offer customers ODM&OEM ONU ONT of highest quality.
And it will require the MOQ.
