FTTH SC UPC GPON ONU ONT PON LOS LAN WLAN GPON Modem Router
Contact Person : Anna
Phone Number : +852 68416561
WhatsApp : +85268416561
Minimum Order Quantity : | 100pcs | Price : | USD-14-15/pcs |
---|---|---|---|
Packaging Details : | Packed with Polyfoam, Outer Packed with Brown Box | Delivery Time : | 5-8days |
Payment Terms : | T/T | Supply Ability : | 100000/week |
Place of Origin: | China | Brand Name: | HKING |
---|---|---|---|
Certification: | CE,ISO,RoHS | Model Number: | HG8546M |
Detail Information |
|||
Color: | White | Usage: | FTTH |
---|---|---|---|
Condition: | New | Firmware: | English |
PON: | XPON | Specification: | 1GE 3FE 1TEL |
WIFI: | WIFI |
Product Description

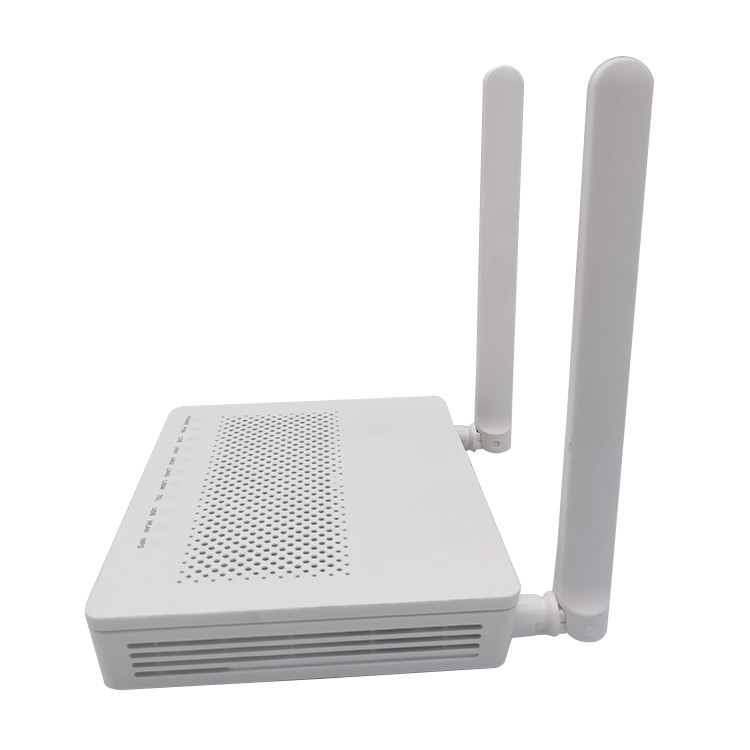

Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi. This is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTBFTTHFTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video
Brand
|
Huawei
|
Model
|
HG8546M
|
Power supply
|
12V,1.5A
|
Power consumption (full loaded)
|
≤15W
|
Outline dimensions (mm) (W*D*H)
|
240*160*35mm
|
Weight (in maximum configuration)
|
≤0.5kg
|
WIFI
|
Antenna 2×2, 5dBi external antenna
|
EIRP Max 25dBm
|
|
VoIP
|
REN Max 5REN
|
Connector 1x RJ11
|
|
Ringing 65V RMS ringing voltage
|
|
USB
|
Max 1A for each port
|
Environmental requirements
|
Working temperature:0ºC~50ºC
|
Storage temperature:-40ºC~70ºC
|
|
Working humidity:5%~90% Storage temperature:5%~95% no condensing
|
|
Ethernet
|
Standard;IEEE802.3 IEEE802.3au IEEE802.3x
|
Interface;1x 10/100/1000BASE-T+310/100Base-T RJ45
Auto negotiation Auto MDI/MDIX |
