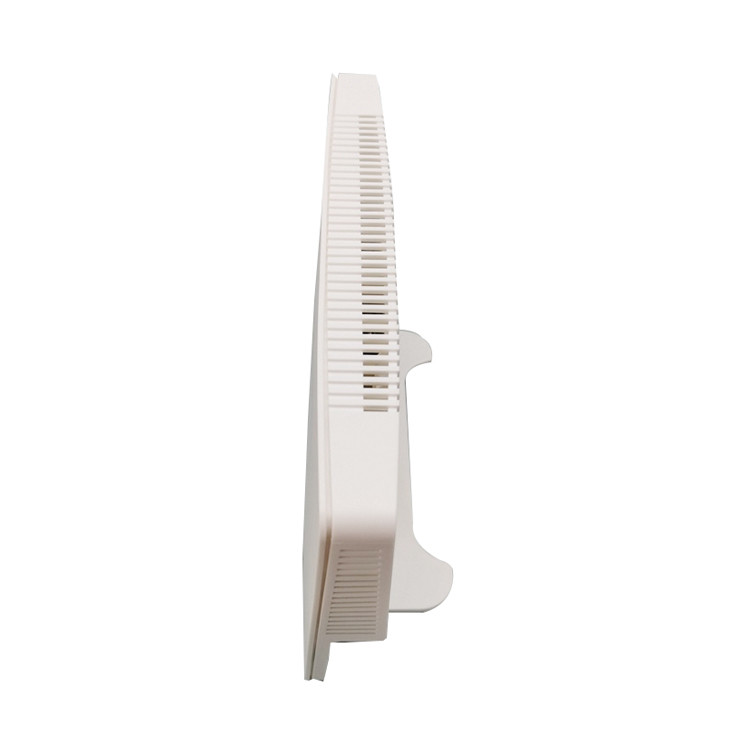

HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router
HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router
HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router
Contact Now

HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router

Minimum Order Quantity : 50pcs Price : Negociatable
Packaging Details : Carton Box Delivery Time : 7-15days
Payment Terms : T/T,Western Union Supply Ability : 10000pcs/Week
Place of Origin: China Brand Name: GPON ONU
Certification: CE ROHS Anatel Model Number: HG8245Q2

Detail Information
Chipset: Hisilicon Firmware: English
Dimensions (H X W X D): 130x110x 35mm Weight: 0.8g
Ports: 4GE+1TEL Wi-Fi Dual Band WLAN1: 2.4GHz 2 * 2 MIMO 802.11b/g/n
WLAN2: 5.0GHz L2 Forwarding Capability: 200 Mbit/s Down/upstream
System Power Supply: 12V 1.5A Optical Connector: SC/UPC
Indicators: Power/PON/INTERNET/LAN//USB Power Supply: EU Power / US Power/ UK Power Optional
High Light:

HG8245Q2 HUAWEI GPON ONU

,

1VOICE HUAWEI GPON ONU

,

2WIFI ftth modem router

Product Description

FTTH ONT with 4GE+1VOICE+2USB+2WIFI 2.4G/5G Huawei HG8245Q2 GPON ONU
Product Description
Huawei HG8245Q2 FTTH is a routing-type ONT in the Huawei all-optical access solution. It uses GPON technology to implement ultra-broadband access for users. This model offers 4 GE+1 POTS+2 USB+2 WiFi(4 GE ports, 2 POTS ports, 1 USB port, 1 2.4G WiFi port, and 1 5G WiFi port). The high forwarding performance ensures the user experience of voice, data, and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

Smart interconnection
* Smart Wi-Fi coverage
* SIP/H.248 auto-negotiation
* Any port any service
* Parental control
* L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Smart service
* Smart Wi-Fi sharing:
Portal/802.1x authentication
SoftGRE-based sharing
* Association of one account with two POTS ports

Layer 3 Features
* PPPoE/Static IP/DHCP
* NAT/NAPT
* Port forwarding
* ALG, UPnP
* DDNS/DNS server/DNS client
* IPv6/IPv4 dual stack, and DS-Lite
* Static/Default routes
* Multiple services on one WAN port

Specification
Brand
Huawei
Model
HG8245Q2
Weight
About 1500 g
Operating temperature
0°C to +40°C
Operating humidity
5% RH to 95% RH (non-condensing)
Power adapter input
100–240 V AC, 50/60 Hz
System power supply
11–14 V DC, 2 A
Static power consumption
8 W
Maximum power consumption
20.5 W
Ports
1POTS + 4GE + 2.4G/5G Wi-Fi + 1USB
Indicators
POWER/PON/LOS/TEL/LAN/WLAN/ WPS/USB

HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router 0
HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router 1
HG8245Q2 HUAWEI GPON ONU 4GE 1VOICE 2USB 2WIFI 2.4G 5G FTTH Modem Router 2
