ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT
ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT
Contact Now

ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT

Minimum Order Quantity : 5piece Packaging Details : 50X55X30 cm
Delivery Time : 15-20days Payment Terms : L/C, T/T, Western Union
Supply Ability : 10000piece/year
Place of Origin: SHENZHEN Brand Name: ZTE
Certification: CE SE Model Number: C320

Detail Information
PON Card:: GTGO GTXO GTGH ETGO ETGH Type: FTTx Solutions
Control Board: SMXA/3 SMXA Application: FTTH System
SFP Module:: B+ C+ C++ For Option Power Card:: PRAM
Warranty Time:: 1 Year 8-port Board:: GTGO
Power: -48V/-60V DC 110/220V AC
High Light:

32 PORT OLT Optical Line Terminal

,

C320 OLT Optical Line Terminal

,

16 PORT C320 GPON OLT

Product Description

ZXA10 C320 GPON OLT FOR BOARD GTGH C++ 16 PORT 32 PORT GPON OLT
Product Description
ZTE ZXA10 C320 OLT (ZTE C320) is a compact, dense full-service xPON converged optical access platform for next-generation optical access networks, and it supports GPON/EPON/P2P/10GEPON/XG-PON1 common platform access, ZTE ZXA10 C320 supports HSI, VolP, IPTV, CATV, mobile backhaul, WiFi and other full-service access aggregation and management control, providing carrier-class QoS andsecurity reliability.

Meanwhile ZTE ZXA10 C320 is a small size, full-service optical access convergent platform and provides carrier-class QoS
andreliable network to meet the requirements for small-scale implementation of FTTx services.

ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts Nlarge-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board costs.

Specification
Physical dimension
86.1 mm (height) x 482.6 mm (width) x 270 mm (depth)
Power supply
-48V/-60v dual-channel DC, 220V AC +48V backup power
Cabinet
Outdoor/building: EC90EB/EC70E indoor and outdoor integrated cabinets
Dedicated machine room: indoor 19-inch standard cabinet
Main control switch board
Panel interface: 1*10GE or GE (optical)+1*GE or FE (optical)+1*GE/FE (electric) +1*maintenance serial port+1*management network
port+1*environmental monitoring interface
SMXA
Ethernet uplink: maximum support 2*10GE+4*GE or 6*GE
Typical business line card
ETGO(8*EPON)/GTGO(8*GPON)；ETGH(16*EPON)/GTGH(16*GPON)
(2 slots)
FTGK(24/48*P2P) ETTO(8*10G-EPON)/GTXO(8*XG-PON1)

Details Images

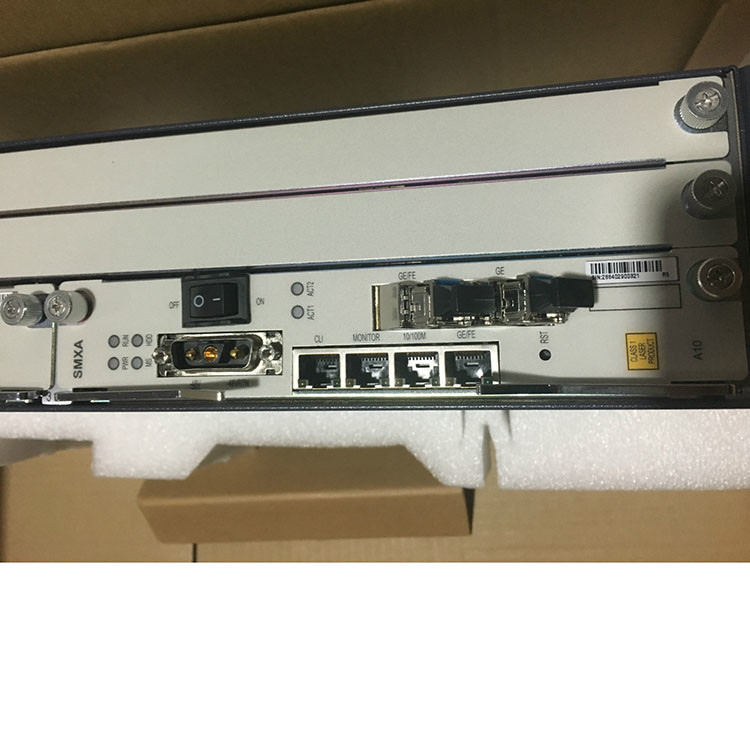

ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT 0

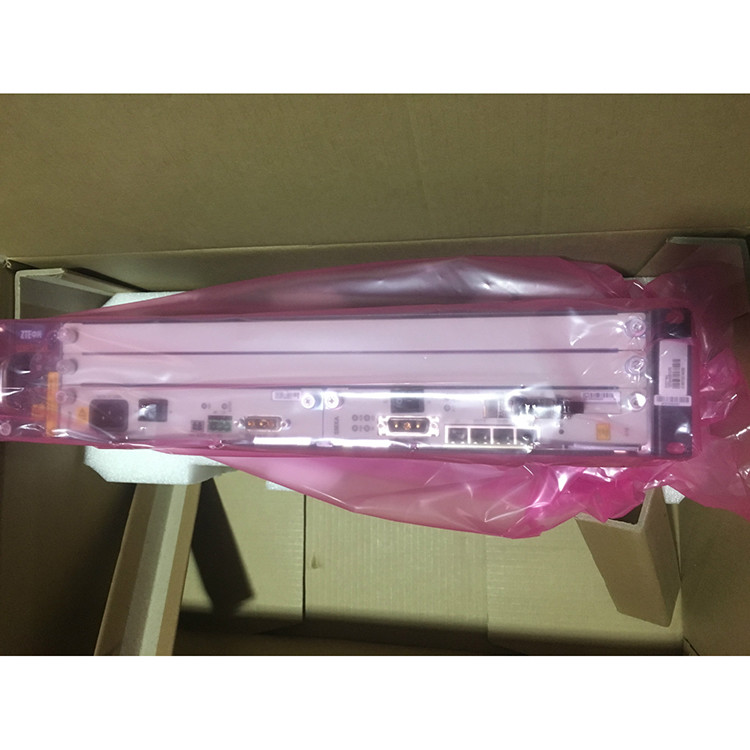

ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT 1

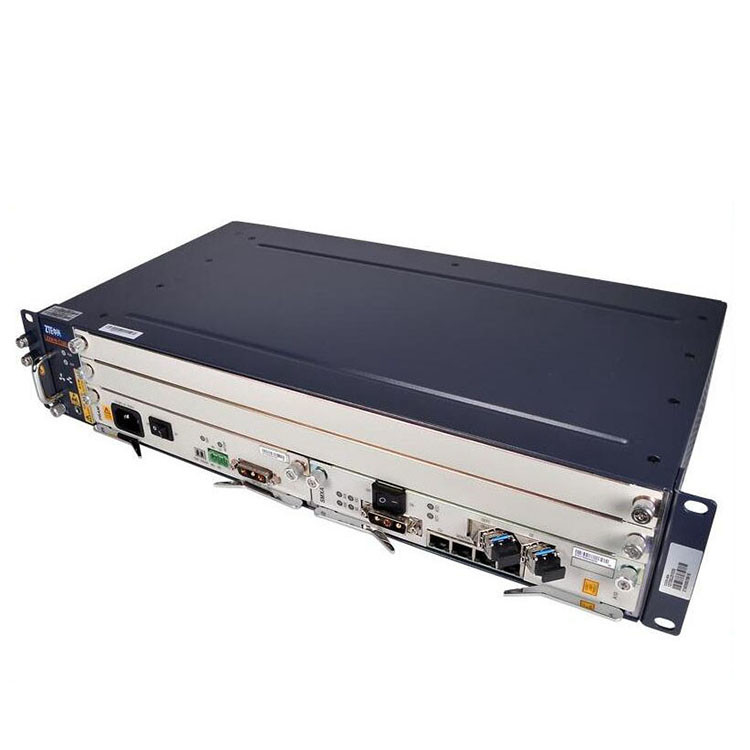

ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT 2
ZXA10 C320 GPON OLT Optical Line Terminal GTGH C++ 16 PORT 32 PORT 3
