Features:

>Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.

>Integrated OMCI remote configuration and maintenance function.

>Functions like transceiver diagnostic monitoring, transmitter disable, etc.

>Fully compatibility with OLT based on Broadlight/Broadcom chipset.

>Support port monitoring, port mirroring, port rate limiting, port SLA, etc.

>Support auto polarity detection of Ethernet ports (AUTO MDIX).

>Support router

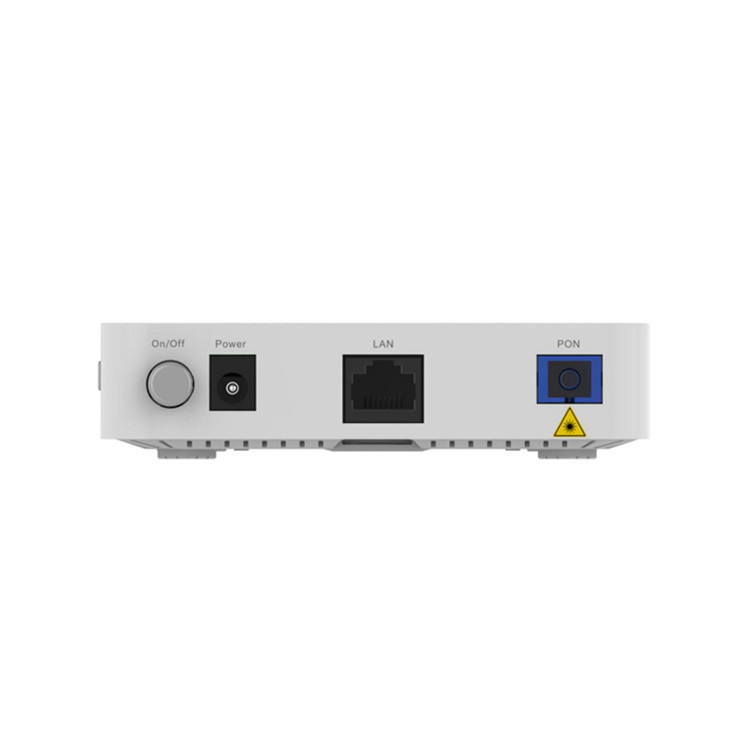

• Port features:

>1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)

>1 10/100/1000M port

• Physical features:

>Power supply: 12VDC

>Power consumption: 4W

>Dimension: 120mm*27mm*90mm(W*H*D)

>Net weight < 0.3Kg

Temperature:

>Working temperature:0~55℃

>Storage temperature: -30~60℃

>Relative humidity: 10~90% (non-condensing)
