4ep+2e Series Poe Switch OEM ODM 100m 4 10 / 100Mbps Poe Ports

Name: 4ep+2e Series Poe Switch OEM ODM 100m 4 10 / 100Mbps Poe Ports
Brand: HK
SKU: HK-4EP+2E
Price: 12.5 USD
Availability: InStock
Rating: 4.5 (126 reviews)

Minimum Order Quantity :	100PCS	Price :	USD12.5
Packaging Details :	1189528mm	Delivery Time :	10-15WORKING DAYS
Payment Terms :	L/C, D/A, D/P, Western Union	Supply Ability :	5000pcs/Week

Place of Origin:	Shenzhen	Brand Name:	HK
Certification:	CCC, CE, FCC, RoHS	Model Number:	HK-4EP+2E

Detail Information
Function:	POE	Dimension:	195×135×38mm
Weight:	0.65kg	Ports:	6*100M Ethernet Port, 4 Ports Have POE Function
Input Voltage::	AC100V～240V 50/60Hz	Data Rate:	10/100M Adaptive
Distance:	250m
High Light:	4ep+2e Poe Switch , Ethernet Poe Switch 100m , 100Mbps Poe Ports

Product Description

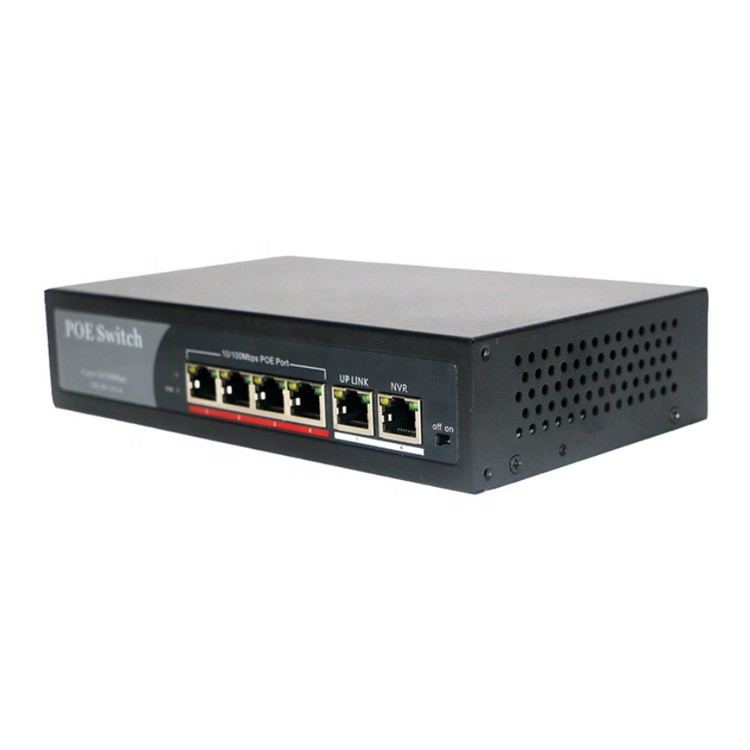

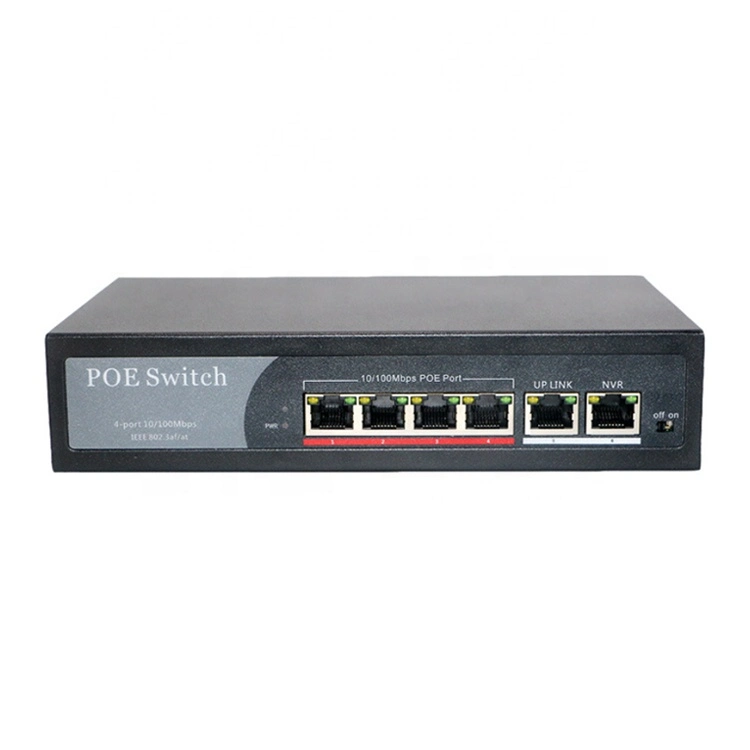

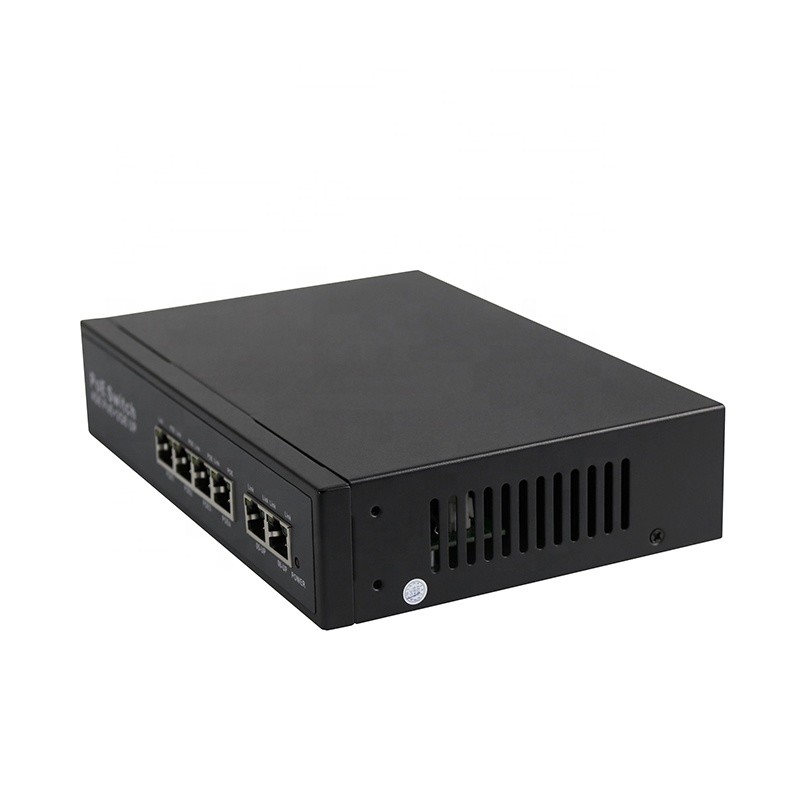

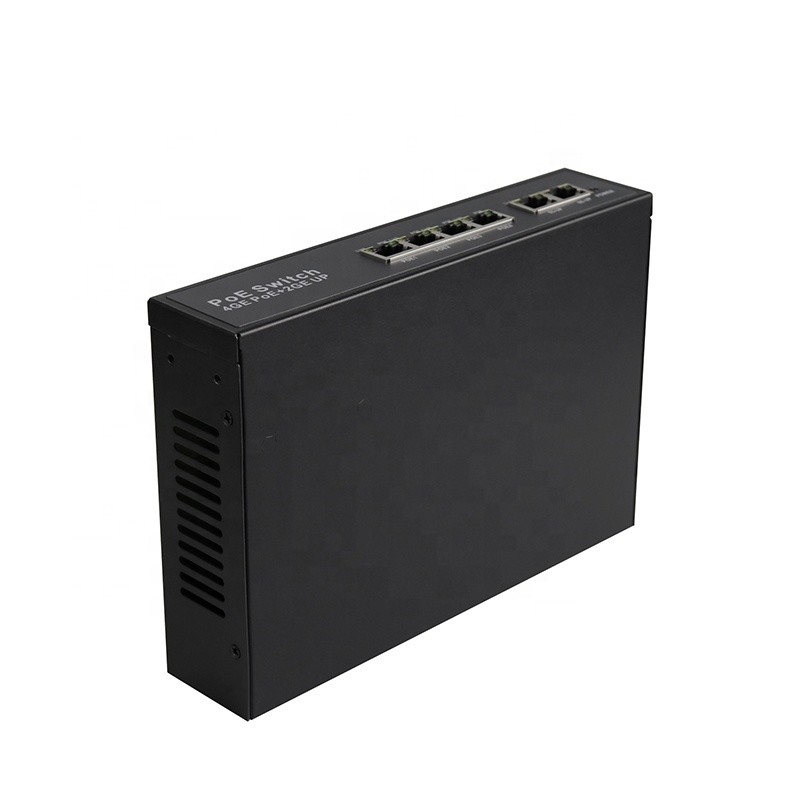

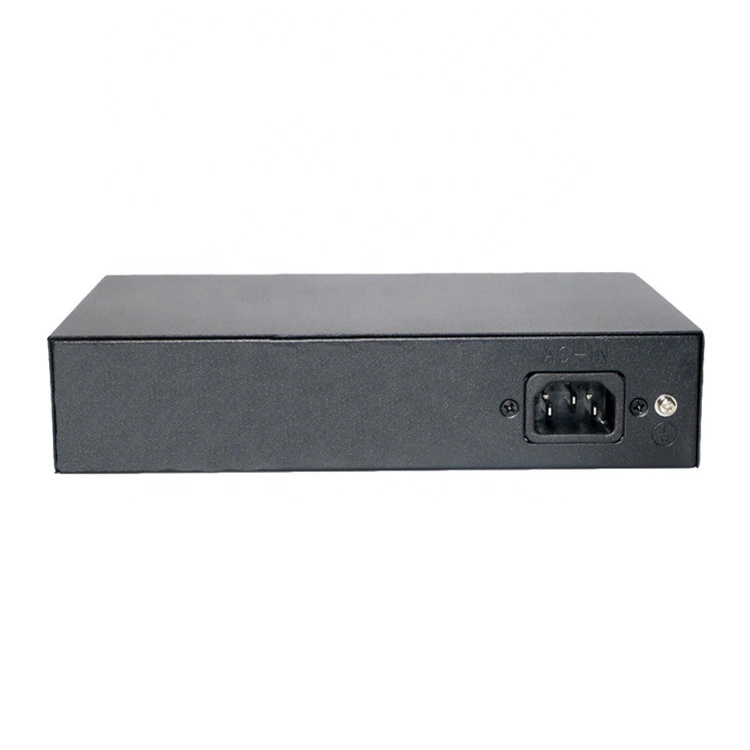

4EP+2E Series POE Switch

Overview

HK-4EP+2E is a 100M POE Switch with 4 10/100Mbps POE ports, with VLAN DIP it can easily have access to VLAN function. There are 2 10/100Mbps uplink port. Longest POE distance can reach 250M. It is designed for school, family, SEMs, small range surveillance and other network connections. All ports support wire speed forwarding and the rate is up to 100Mbps. Each port support 4KV port lightning protection to ensure stable operation.

Specification

project	parameter
port	4 10/100base-t Poe ports Two 10/100base-t uplink ports
Switching performance	Backplane bandwidth: 1.6g MAC address table: 2K Support store and forward
Standard protocol	IEEE802. 3, IEEE802. 3i 10Base-T, IEEE802. 3u 100Base-T, IEEE802. 3x Flow Control, IEEE802. 1q VLAN, IEEE802. 3af PoE, IEEE802. 3at PoE+
Transmission medium and distance	Class V line: 100m in normal mode; Ultra long distance transmission mode: 250m
Poe	Poe port: 4 DC52V, single port MAXIMUM POWER 30W Power supply line pair: 1/2 (+), 3/6 (-)
Power Supply	Ac100~240v 50/60hz input Total power: 65W
indicator light	P: Power indicator, s: ultra long distance transmission mode indicator, V: VLAN mode indicator; Poe indicator; Electric port link/act indicator
Use environment	Operating temperature: -10~+55 ℃ Storage temperature: -40~+70 ℃ Operating humidity: 10~90% non condensing Storage humidity: 5~90% non condensing
physical characteristics	Size (W x D x H): 200x120x44mm Weight: 0.85kg
