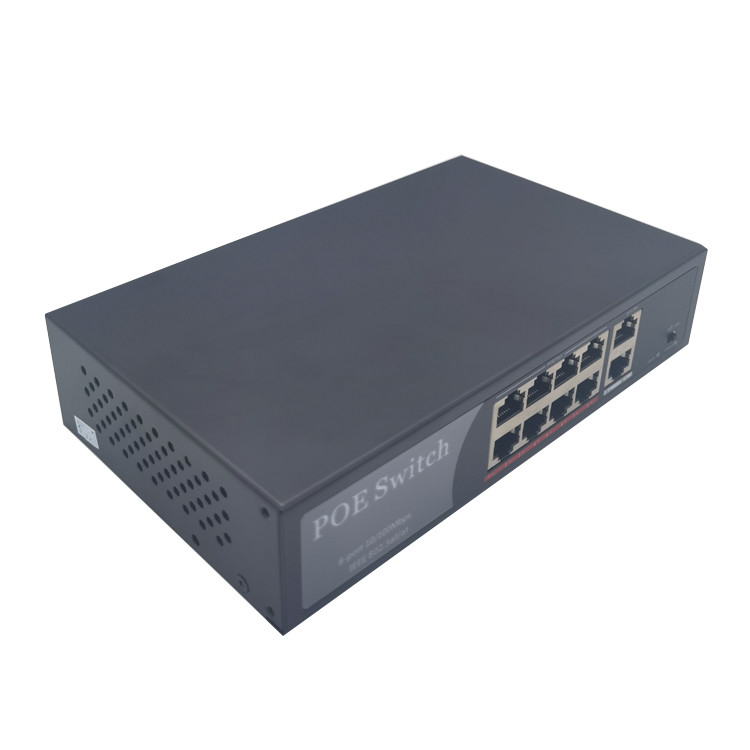

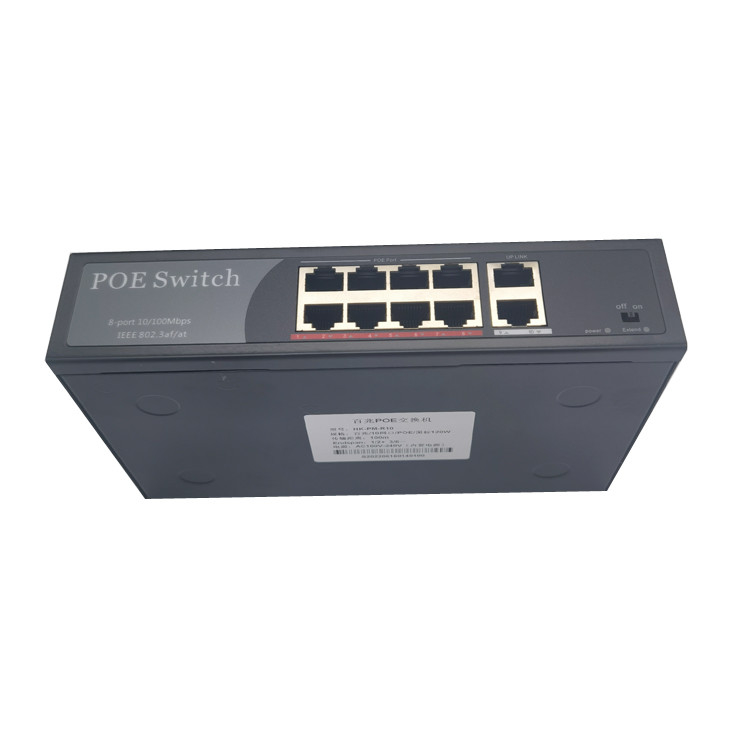

Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control
Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control
Contact Now

Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control

Minimum Order Quantity : 100PCS Price : USD8-USD18
Packaging Details : 118*95*28mm Delivery Time : 10-15WORKING DAYS
Payment Terms : L/C, D/A, D/P, Western Union Supply Ability : 5000000PCS/YEAR
Place of Origin: SHENZHEN Brand Name: HK
Certification: FCC, ce, RoHS, CE FCC RoHS ISO9001:2015 Model Number: HK-F1R10

Detail Information
Communication Mode: Full-Duplex & Half-Duplex Transmission Rate: 10/100Mbps
Model Number: HK-F1R10 Ports: 4+1ports
Operating Temperature:: -20~+55°C Total PWR / Input Voltage:: 65W (AC100-240V)
PoE Ports:: Port 1- 4 Switch Capacity:: 1.6Gbps
Function:: POE
High Light:

100Mbit 10 port Poe Switch

,

Metal Case 10 port Poe Switch

,

Broadcast Storm Control 100m PoE switch

Product Description

8 port poe switch poe camera system 8 ports 1000m PoE switch with 2

Overview

1)10 port switch with 8 port PoE,100Mbit each port
2)Backbound Bandwidth: 2.0 Gbps
3)IEEE802.3at/af Standard
4)PoE Pin:1,2+/3,6-
5)PoE data & power transmission distance 100meter
6)total power:120W
7)Normal:10/100Mbps 100meter
8)Extend:9,10-Port 10/100Mbps;1-8 Port 10Mbps 250meter
9)100Mbit each port





Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control 0

Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control 1

Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control 2













Features



Ø 4*100Mbps POE ports, 2*100Mbps uplink ports

Ø Support 10/100M speed rate, MDI/MDIX and half/full-duplex and auto-negotiation

Ø Each port has complete LED indicator as power indicator, POE indicator, LINK/ACT

Ø VLAN DIP; and 250M long distance transmission

Ø Support IEEE802.d Spanning Tree to make network easier

Ø Support high performance QoS function on each port

Ø Support broadcast storm control

Ø Support 100-240V wide voltage input

Ø Support IEEE802.3x Flow control and Back pressure control

Ø Require no configuration and will instantly operate as soon as you power it up

  • Default with end-span (1/2+, 3/6-) power supply, Mid-span(4/5+, 7/8-) optional
  • All port support wire-speed forwarding, 64-1518 Frame can reach wire speed
  • Support wall mounted installation
  • Support 4K port lightning protection
  • Adopt low power consumption chips, stable and reliable
  • Adopt fanless cooling design, natural cooling
  • Support POE power supply, support IEEE802.3af and IEEE802.3at, each port can provide up to 30W power supply



Application

Stable Metal Case 10 Port Poe Switch 8 PoE 100Mbit Support Broadcast Storm Control 3

Specification

Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX

IEEE802.3af

IEEE802.1q VLAN



IEEE802.3at

IEEE802.3x Flow control

IEEE802.3d Spanning Tree

IEEE802.3p QoS


Certifications CCC, CE, FCC, RoHS
Ethernet Port
  • Connector: RJ45
  • Data Rate: 10/100M adaptive
  • Distance: 250m
  • UTP Type: UTP-5E or higher level
POE Port
  • Power supply: end span
  • Battery core: 1/2+, 3/6-
  • POE port characteristics: 15.4/30W
  • POE total power: 65W
Performance
  • Processing Type: Store and Forward
  • Transmission mode: Full /Half duplex
  • MAC Table Size: 1K
  • Buffer Space: 448K bit
  • Back bandwidth: 1.2G
  • Time Delay: ＜150μs
Power
  • Power Type: built-in power supply
  • Input Voltage: AC100V～240V 50/60Hz
  • Connector: AC Socket
  • Power Consumption: 1.4W～3W
Environment
  • Storage Temperature: -40～70℃
  • Operating Temperature: -10～55℃
  • Relative Humidity: 5-95% ( no condensation)
Warranty 1 year
Physical Characteristics
  • Dimension: 195×135×38mm
  • Weight: 0.65kg
  • Color: Metal, Blue

Order information

HK-4EP+2E 6*100M Ethernet port, 4 ports have POE function

Note: 1. Default with US standard; GB, EU standards as request.
