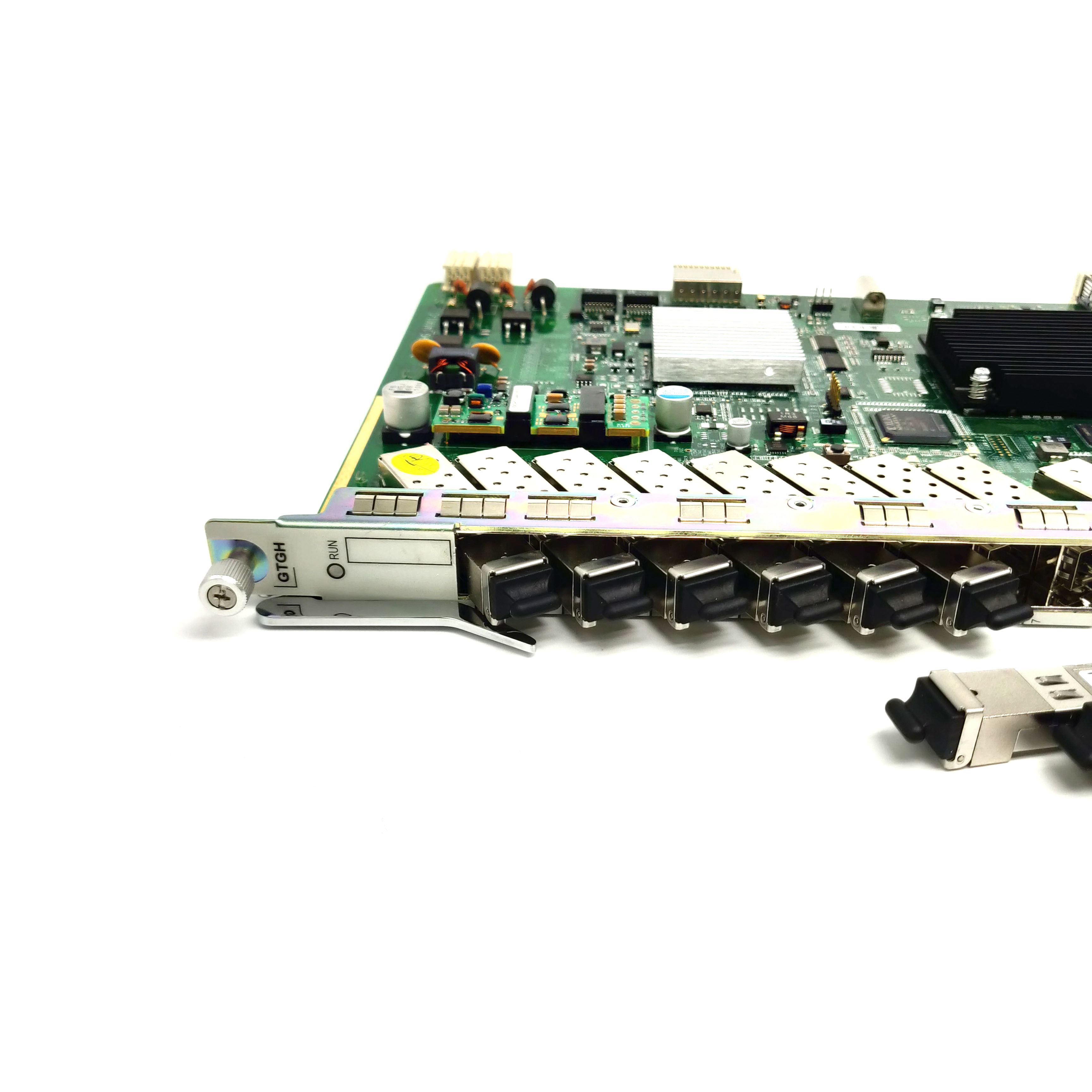

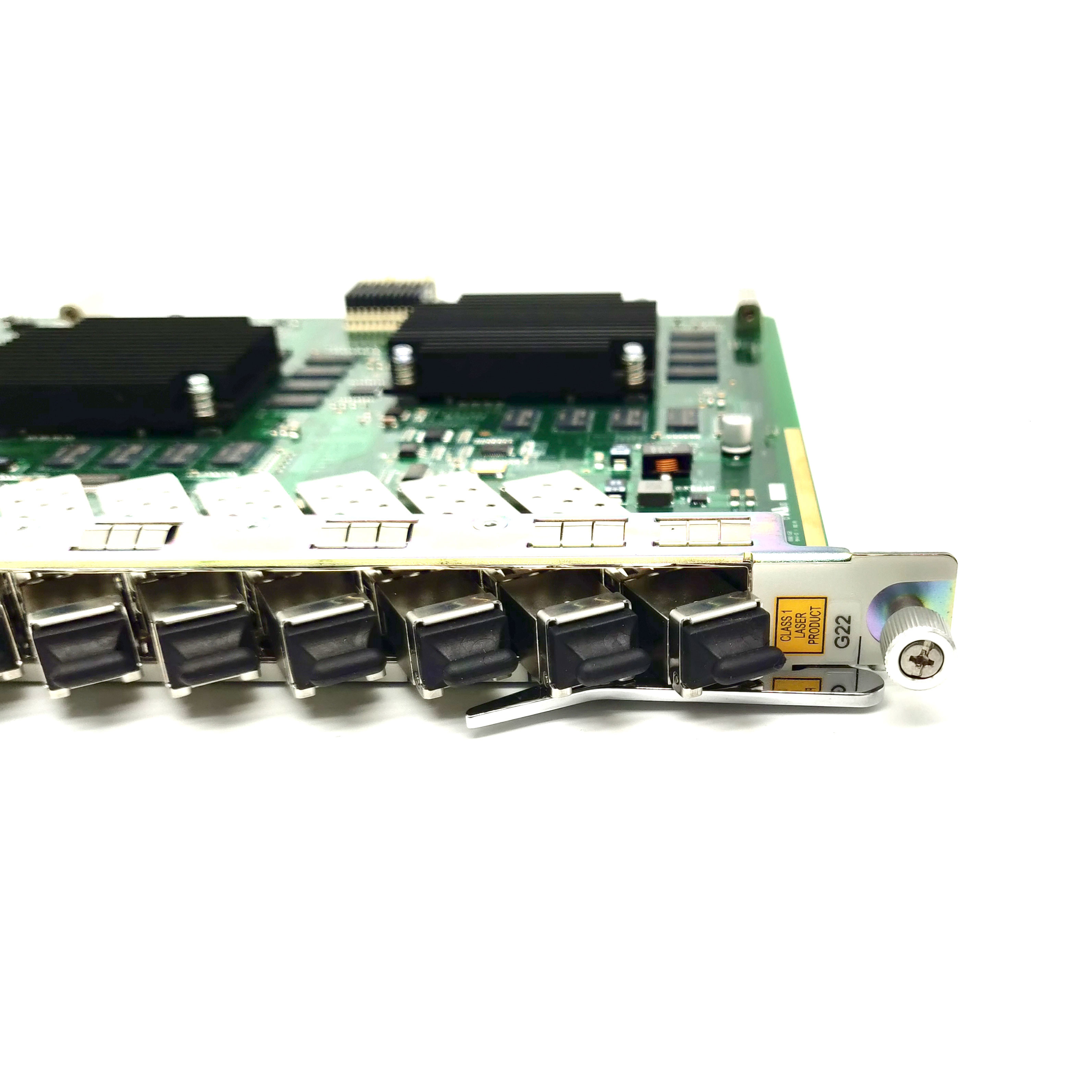

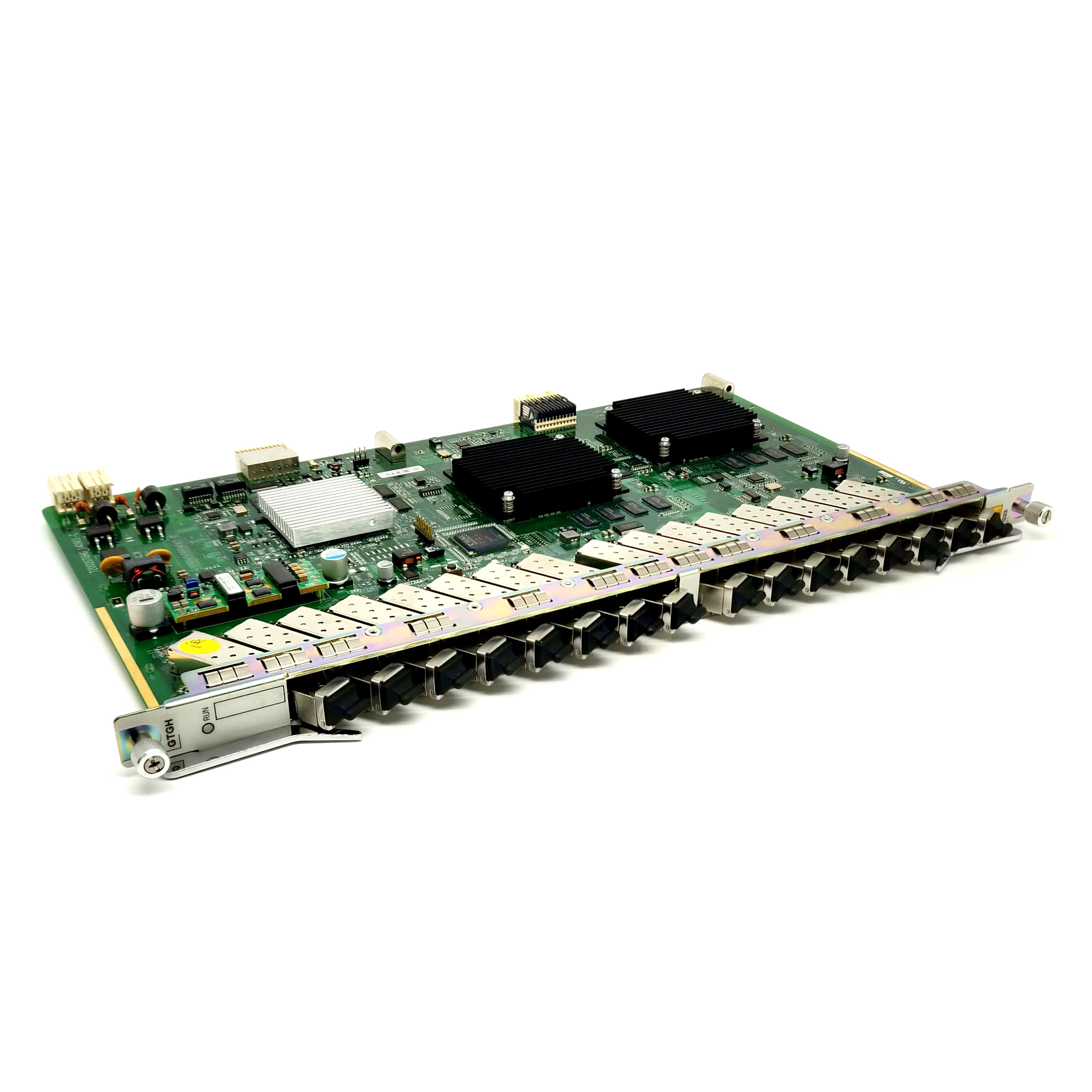

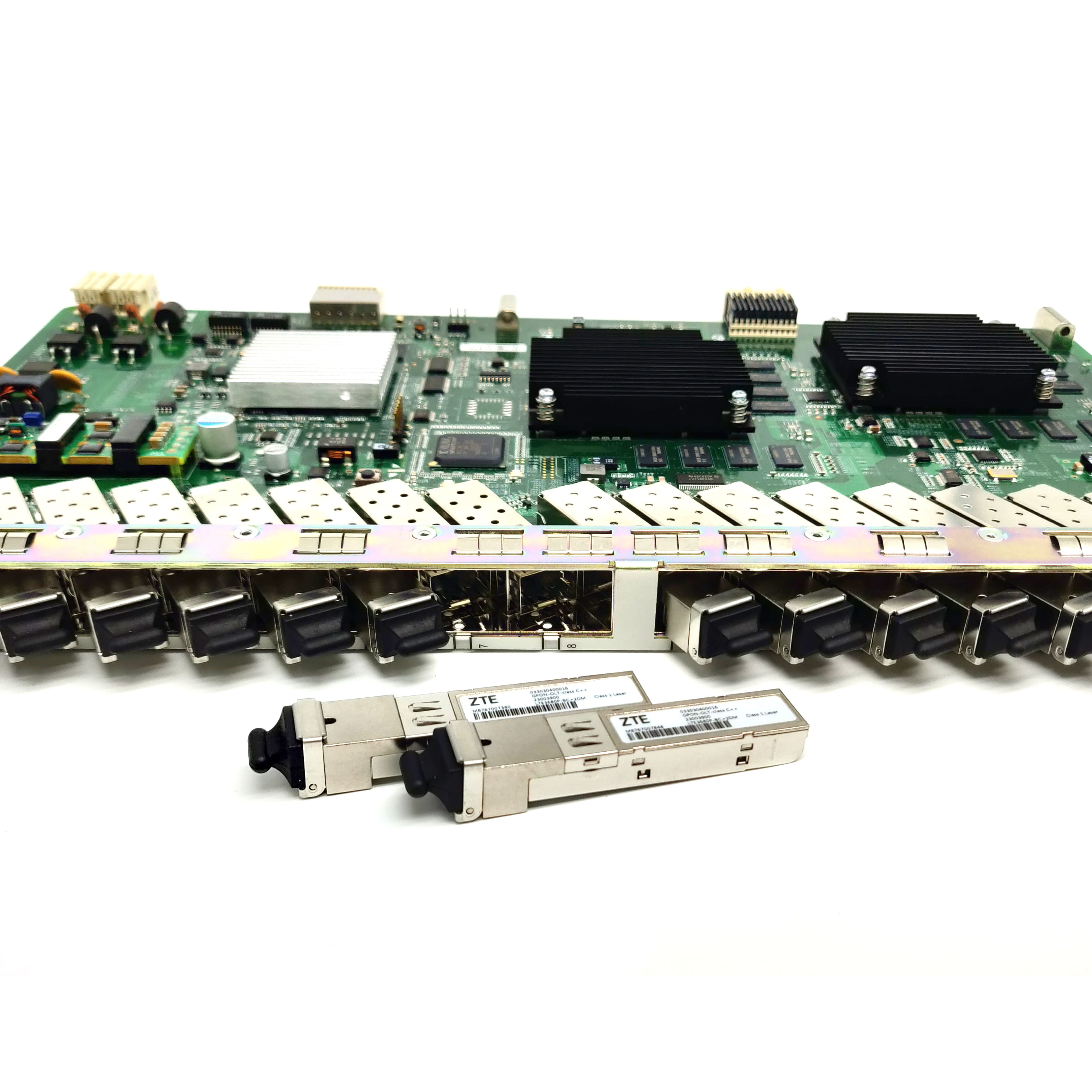

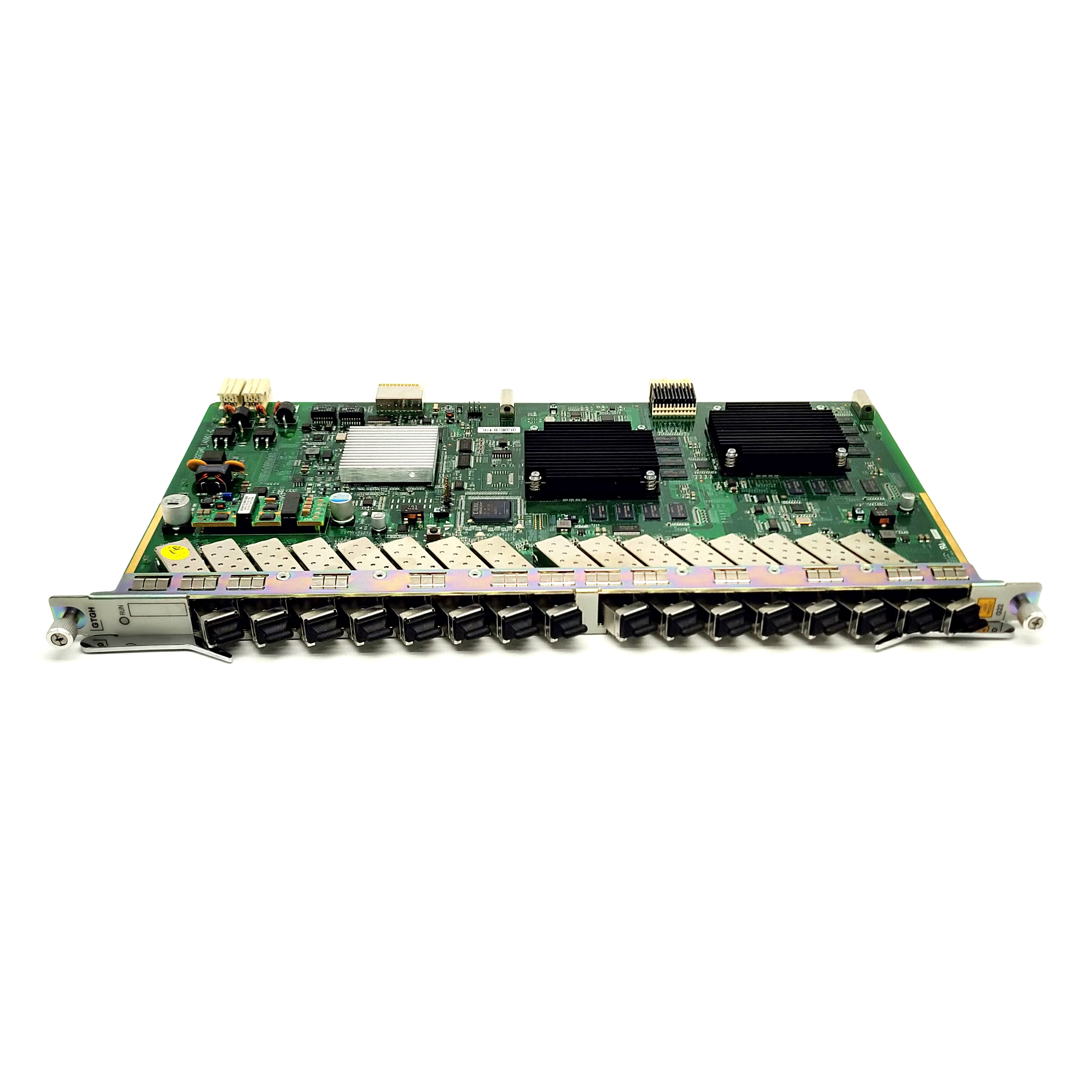

ZTE GTGH Service Board 16 port GPON OLT interface board offering GPON service access for c300 olt

Product Description

ZTE GTGH Service Board is ZTE ZXA10 C300 16-port GPON OLT interface board offering GPON service access.

ZTE GTGH Service Board Product Overview

ZXA10 C320 is new-generation compact OLT, only 2U high, saving installation space; high line card density: industry-leading 16-port GPON/EPON and 48-channel P2P board capability, single-frame can provide 32 G/EPON ports and 96 channels P2P GE port; ZTE C320 supports GPON/EPON/P2P/10G EPON/XG-PON1 with the same platform access, and will also support TWDM-PON technology; unified bearer voice, high-speed Internet access, IPTV, traditional TDM and mobile backhaul services. Integrated access; adopts large-scale OLT hardware and software architecture, supports architecture evolution, is compatible with ZXA10 C300 service boards, and saves board cost.

ZTE GTGH Service Board Product Features

• High Density:
  – 16 GPON ports per card, up to 1:128 split ratio
• GPON Function:
  – Support ONU power saving management defined in G.987.3
  – 1024 T-CONTs per PON port, 4096 GEM ports per PON port
• High TM Performance:
  – Support H-QOS
  – 1024 queues and 356 schedulers per PON port
  – Support color-sensitive RED and WRED discard algorithm
• Clock / Time Function:
  – Receive 1PPS+TOD signals and send them to the ONU through a PON channel
• Low Power Consumption:
  – Newly developed lower power GPON MAC chip
  – Reduce 30% power consumption on industry average
